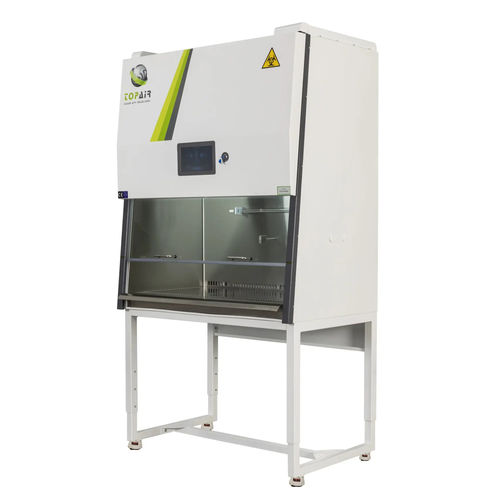

Type B2 microbiological safety cabinet BO-090-ME-B

laboratoryfor researchISO class 5

Overview
TopAir’s Class II, Type B2 Biological Safety Cabinet protects laboratory personnel, the environment and sensitive work processes involving biological agents. Protection is provided by two HEPA H14 filters (99.9995% @ 0.3 µm) and a 100% exhaust airflow pattern. The unit features an oven-treated epoxy coated metal exterior, SS304 internal lining (SS316 optional) and a 10.1” color touchscreen for control, status and alarms.

Structure

• Metal external structure – oven-treated epoxy coated
• Internal lining in SS304 (option for SS316)
• Retractable one-piece worktop with spill tray
• Front window: 6 mm triplex safety glass with manual counterweight system

Features

• Microprocessor control with 10.1” color touchscreen
• Class II, Type B2 airflow pattern: 100% exhaust
• High-efficiency quiet ECM fan with VAV auto filter clogging compensation
• Inflow and downflow alarms, sash position alarm, critical chamber red light, filter alarm, service reminders
• Real-time filter gauge status display
• Germicidal waterproof UV light (254 nm) with safety interlock
• LED illumination (1000 lux)
• 2 x integrated universal sockets
• Display of time, date, temperature, humidity
• Multi-language UI; metric and imperial units
• Adjustable stand and arm rest
• Meets ISO 5 / Class 100 (ISO 14644-1) and US Federal Standard 209E cleanliness
• CE certified; complies with EN 12469
• Requires exhaust connection to ducting system (not included)
• Optional IPMS (Integrated Particle Monitoring System) available for ISO 5 verification

Models / Spec table (as listed)
Spec / Model: BO-090-ME-B | BO-120-ME-B | BO-150-ME-B | BO-180-ME-B
Outer Dimensions W x D x H:
915 x 800 x 1450 mm — 36 x 31.5 x 57″ | 1220 x 800 x 1450 mm — 48 x 31.5 x 57″ | 1525 x 800 x 1450 mm — 60 x 31.5 x 57″ | 1830 x 800 x 1450 mm — 72 x 31.5 x 57″
Workspace (W x D x H):
830 x 620 x 650 mm — 32.6 x 24.4 x 25.6 | 1135 x 620 x 650 mm — 44.7 x 31.5 x 25.6 | 1440 x 620 x 650 mm — 56.7 x 31.5 x 25.6 | 1745 x 620 x 650 mm — 68.5 x 31.5 x 25.6
Front Sash: Clear visibility 550 mm / 21.7", max open 450 mm / 17.7" (working height 200 mm / 8")
Certifications: CE / In Accordance with EN 12469
Control system: Microprocessor controlled with 10.1" full touchscreen, air velocity monitoring, alarms, UV and lights control, electric outlets control, multilingual, metric and imperial. IPMS optional.
Downflow Velocity: 0.33 m/s (66 fpm)
Inflow Velocity: 0.5 m/s (100 fpm)
Airflow pattern: 100% exhaust
Cleanliness level: Class 100 / ISO 5
Hood Material: Oven-treated epoxy coated 16-gauge chemical-resistant CRCA galvanized metal sheet (1.5 mm) with 304 stainless steel interior
Adjustable Stand Height Range: 70 / 80 / 90 cm (27.5 / 31.4 / 35.4")
Power Supply: 115 / 230 V, 50/60 Hz, Single phase
Noise Level (tested at 20 cm from worktable, 1.2 m above ground): <56 dB | <62 dB | <63 dB (depending on model)
Illumination: 1000 LUX, Eco-friendly LED lighting, Germicidal UV light 254 nm
Filters: HEPA H14 Efficiency 99.9995% @ 0.3 µm

Accessories (listed)

• BO-FAN-SET — Set includes: centrifugal fan, 10-meter flexible pipe Dia25/10" and frequency inverter

Technical specifications

• Protection: Class II, Type B2 biosafety cabinet — 100% exhaust
• Filtration: 2 x HEPA H14 (99.9995% @ 0.3 µm)
• Control: 10.1" microprocessor touchscreen with multilingual UI, alarms and maintenance reminders
• Material: Epoxy-coated metal exterior; SS304 interior (SS316 optional)
• Illumination & UV: LED 1000 lux; germicidal UV 254 nm with interlock
• Cleanliness: ISO 5 / Class 100
• Power: 115 / 230 V, 50/60 Hz
• Noise: <56–63 dB depending on model
• Adjustable stand heights: 70 / 80 / 90 cm
• Optional: IPMS for contamination alarm and ISO 5 verification
