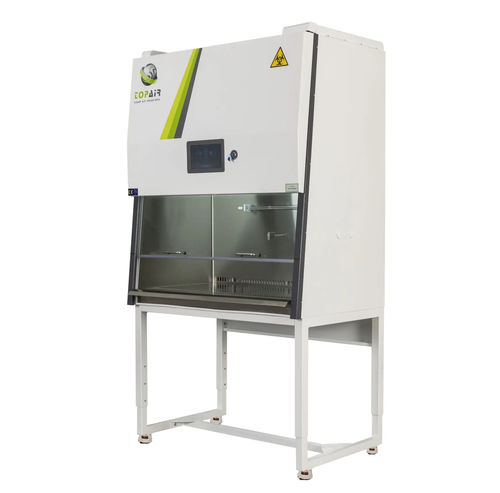

Type A2 microbiological safety cabinet BO-090-NSF

laboratoryISO class 5for biological products

Overview
TopAir's Class II, Type A2 Biological Safety Cabinet protects laboratory personnel, the environment and sensitive work processes involving biological agents. Protection is provided by two ULPA U15 filters (99.9995% @ 0.1 µm) and a 70% downflow / 30% exhaust airflow pattern. The enclosure combines an epoxy-coated metal exterior with SS304 stainless steel internals. Operation and status monitoring are managed via a 10.1 in color touchscreen with alarms and maintenance reminders. The integrated Particle Monitoring System (IPMS) enables ISO 5 verification with contamination alarm. CE certified and compliant with NSF-49.

Structure

• Epoxy-coated, chemical-resistant metal exterior
• One-piece SS304 stainless steel interior worktop and lining
• 6 mm triplex safety front window with electric lifting mechanism
• Side windows for improved visibility

Features

• Microprocessor control with 10.1 in color touchscreen display
• Class II, Type A2 airflow: 70% downflow (recirculation), 30% exhaust
• Two ULPA U15 filters (99.9995% @ 0.1 µm)
• High-efficiency quiet ECM fan with VAV auto compensation for filter loading
• Alarms: inflow, downflow, sash position, critical chamber red light, filter, service reminders
• Real-time filter gauge status display
• Germicidal waterproof UV lamp (254 nm) with safety interlock
• LED illumination (1000 lux)
• 2 universal power sockets and 2 integrated taps
• Display of time, date, temperature and humidity
• Multi-language interface; metric and imperial units
• Adjustable stand height and arm rest
• ISO 5 / Class 100 cleanliness (ISO 14644-1, US Federal Std. 209E)
• CE certified; in accordance with NSF-49; ETL (C/US) certified

Models (spec / model table)
Spec / Model | BO-090-NSF | BO-120-NSF | BO-150-NSF | BO-180-NSF
Outer Dimensions W x D x H | 915 x 800 x 1450 mm (36 x 31.5 x 57 in) | 1220 x 800 x 1450 mm (48 x 31.5 x 57 in) | 1525 x 800 x 1450 mm (60 x 31.5 x 57 in) | 1830 x 800 x 1450 mm (72 x 31.5 x 57 in)
Workspace (W x D x H) | 830 x 620 x 650 mm (32.6 x 24.4 x 25.6 in) | 1135 x 620 x 650 mm (44.7 x 24.4 x 25.6 in) | 1440 x 620 x 650 mm (56.7 x 24.4 x 25.6 in) | 1745 x 620 x 650 mm (68.7 x 24.4 x 25.6 in)
Front Sash | Clear visibility 550 mm, max open 450 mm (working height 200 mm)
Certifications | CE / In accordance with NSF-49 / ETL (C/US)

Technical specifications

• Control system: Microprocessor with 10.1 in full touchscreen; air velocity monitoring, alarms, sash control, UV and light control, outlet control, multilingual, metric/imperial; IPMS included
• Downflow velocity: 0.33 m/s (66 fpm)
• Inflow velocity: 0.5 m/s (100 fpm)
• Airflow pattern: 70% recirculation, 30% exhaust
• Cleanliness: Class 100 / ISO 5 with IPMS particle monitoring and alarm
• Hood material: Oven-treated epoxy-coated 16-gauge (1.5 mm) CRCA galvanized sheet exterior; 304 stainless steel interior
• Adjustable stand height: 70 / 80 / 90 cm
• Power supply: 115 / 230 V, 50/60 Hz, single phase
• Noise level (measured 20 cm from worktable, 1.2 m above floor): <56 dB (BO-090), <62 dB (BO-120), <63 dB (BO-150/BO-180)
• Illumination: 1000 lux LED; germicidal UV 254 nm
• Filters: ULPA U15, 99.9995% @ 0.1 µm
• Integrated Particle Monitoring System for ISO 5 verification and contamination alarm

Accessories and options

• IPMS particle monitoring with alarm and ISO 5 verification
• Touchscreen control and status display with service reminders
• Standard sizes and custom manufacturing options
