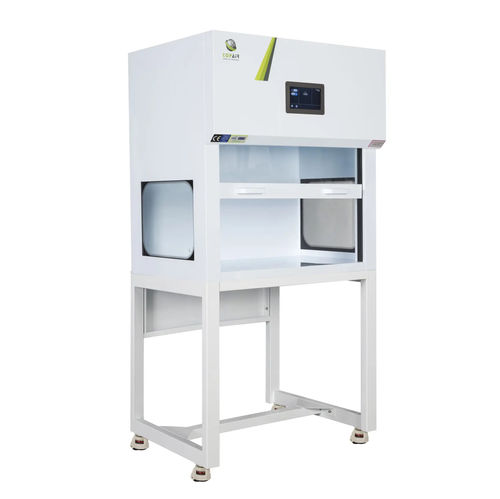

Decontamination clean bench PCR-060-HEPA

laboratoryfor research laboratoriesfor DNA and RNA preparation

Product description
TopAir Polypropylene PCR-HEPA cabinets provide a HEPA‑filtered workspace for contamination‑sensitive laboratory tasks such as genomics, proteomics, molecular biology and forensic analysis. Constructed from non‑corrosive, chemical‑resistant polypropylene, the cabinets combine controlled laminar airflow, H14 HEPA filtration and integrated UV decontamination for reduced particulate and biological contamination risk.

Structure

• 8 mm welded polypropylene construction with high chemical resistance
• 5 mm safety front glass window
• Side windows for enhanced visibility

Features

• Microprocessor control system with 7” color touchscreen display
• H14 HEPA filter — efficiency 99.9995% @ 0.3 μm
• Fan control with 10 speeds
• Germicidal UV light (254 nm, 17 W) with safety interlock and programmable timer
• 800 lux LED lighting
• Air velocity: 0.33 m/s (66 FPM)
• High‑efficiency quiet EC fan
• Optional stand available
• Cleanliness level: ISO 6 / Class 1000 (ISO 14644‑1) and USA Federal Standard 209E; CE certification

Models
Spec / Model | PCR-060-HEPA | PCR-090-HEPA | PCR-120-HEPA
External Dimensions W x D x H | 600 x 640 x 950 mm — 23.6 x 25.2 x 37.4” | 900 x 640 x 950 mm — 35.4 x 25.2 x 37.4” | 1200 x 640 x 950 mm — 47.2 x 25.2 x 37.4”
Workspace (W x D x H) | 585 x 450 x 590 mm — 23 x 17.7 x 23.2” | 885 x 450 x 590 mm — 34.8 x 17.7 x 23.2” | 1185 x 450 x 590 mm — 46.6 x 17.7 x 23.2”
Front Sash Max Opening | 450 mm / 17.7” | 450 mm / 17.7” | 450 mm / 17.7”
Production / test Standard | USA Federal Standard 209E / ISO 14644-1, CE (applies to all models)
Air Velocity | 0.33 m/s, 66 FPM (all models)
Hood & worktop Material | Polypropylene (all models)
Filter | H14 HEPA filter at Efficiency 99.9995% @ 0.3 µm (all models)
Noise (tested 20 cm from the worktop, 1.2 m above ground) | < 52 dB (all models)
UV light | 17 W ozone free 254 nm (all models)
Power Supply | 110 / 220 V, 50/60 Hz, Single phase (all models)
Illumination | 800 LUX LED lighting (all models)

Accessories
Stand PCR-060-ST: 600 x 640 x 802 mm — 24 x 25.2 x 31.57”
Stand PCR-090-ST: 900 x 640 x 802 mm — 36 x 25.2 x 31.57”
Stand PCR-120-ST: 1200 x 640 x 802 mm — 48 x 25.2 x 31.57”

Technical specifications

• Microprocessor control with 7” color touchscreen
• H14 HEPA filter — efficiency 99.9995% @ 0.3 μm
• Fan control: 10 speeds
• Germicidal UV light 254 nm (17 W) with safety interlock and programmable timer
• Illumination: 800 LUX LED
• Air velocity: 0.33 m/s (66 FPM)
• Noise: < 52 dB (measured 20 cm from worktop, 1.2 m above ground)
• High-efficiency quiet EC fan
• Hood & worktop material: Polypropylene (non-corrosive, high chemical resistance)
• Front sash max opening: 450 mm / 17.7”
• UV: ozone-free 254 nm, 17 W
• Power supply: 110 / 220 V, 50/60 Hz, single phase
• Cleanliness level: ISO 6 / Class 1000 (ISO 14644-1) and USA Federal Standard 209E; CE certification
• Available workspace dimensions per model: PCR-060-HEPA (585 x 450 x 590 mm), PCR-090-HEPA (885 x 450 x 590 mm), PCR-120-HEPA (1185 x 450 x 590 mm)
