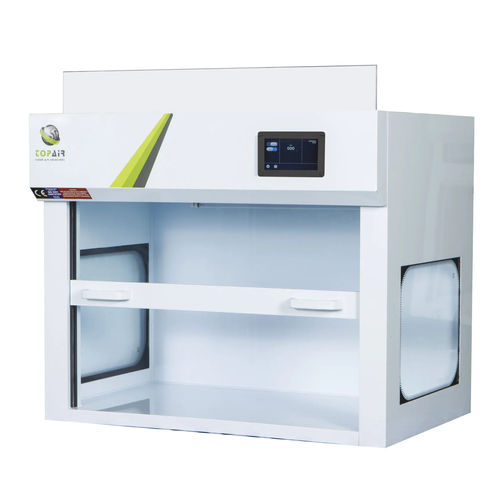

Laboratory clean bench PCR-060-UV

for research laboratoriesfor DNA and RNA preparationfor PCR

Product overview
TopAir polypropylene PCR-UV cabinets (dead box) provide controlled UV decontamination and a chemical-resistant workspace for molecular biology and forensic laboratories. Constructed from welded polypropylene, these cabinets resist common laboratory reagents and deliver stable thermal and mechanical properties suited to PCR preparation workflows.

Structure

• 8 mm welded polypropylene panels with high chemical resistance
• 5 mm safety front glass window
• Side windows for improved visibility

Features

• Microprocessor control with 7" color touch screen display
• Germicidal UV lamp (254 nm) with safety interlock
• Programmable UV timer for scheduled decontamination
• 800 lux LED illumination for work area
• Optional dedicated stand

Models (table)
Spec/ Model — PCR-060-UV — PCR-090-UV — PCR-120-UV
External Dimensions W x D x H — 600 x 640 x 750 mm — 900 x 640 x 750 mm — 1200 x 640 x 750 mm
(inches) — 23.6 x 25.2 x 29.5" — 35.4 x 25.2 x 29.5" — 47.2 x 25.2 x 29.5"
Workspace (W x D x H) — 580 x 450 x 550 mm — 880 x 450 x 550 mm — 1180 x 450 x 550 mm
(inches) — 22.8 x 17.7 x 21.6" — 34.6 x 17.7 x 21.6" — 46.4 x 17.7 x 21.6"
Front Sash Max Opening — 500 mm / 19.6" — 500 mm / 19.6" — 500 mm / 19.6"
Filter — None (all models)
Cabinet Material — Polypropylene (all models)
Worktop Material — Polypropylene (all models)
UV light — 17 W ozone-free 254 nm (all models)
Power Supply — 110 / 220 V, 50/60 Hz, Single phase (all models)
Illumination — 800 lux LED lighting (all models)

Accessories (table)
Model — Description
Stand PCR-060-ST — 600 x 640 x 802 mm (24 x 25.2 x 31.57")
Stand PCR-090-ST — 900 x 640 x 802 mm (36 x 25.2 x 31.57")
Stand PCR-120-ST — 1200 x 640 x 802 mm (48 x 25.2 x 31.57")

Specifications

• Cabinet material: Polypropylene (8 mm welded)
• Worktop material: Polypropylene
• Front window: 5 mm safety glass
• Side windows: for improved visibility
• UV: 17 W ozone-free germicidal lamp at 254 nm with safety interlock
• UV: programmable timer function
• Control: Microprocessor control with 7" color touch screen display
• Illumination: 800 lux LED lighting
• Power supply: 110 / 220 V, 50/60 Hz, single phase
• Front sash maximum opening: 500 mm (19.6")
• Available models: PCR-060-UV, PCR-090-UV, PCR-120-UV (workspaces and external dims as listed above)
• Filter: None (standard configuration)
• Optional accessories: dedicated stands (PCR-060-ST, PCR-090-ST, PCR-120-ST)
