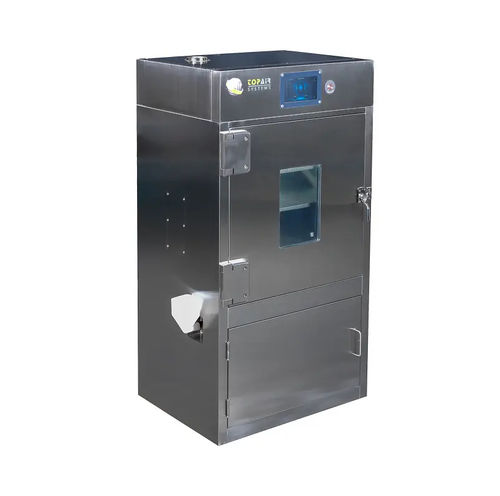

Fingerprint development test chamber ND-080

for forensic applicationsfloor-standing

Product Overview
The Ninhydrin, DFO and Indandione Chamber Cabinet by TopAir Systems accelerates latent fingerprint development on absorbent surfaces. It employs DFO, Ninhydrin and Indandione (and other agents) in a controlled environment to optimize efficacy by managing moisture, temperature and duration. The cabinet is constructed for durability and efficient operation with a stainless steel interior, high-performance heating, humidity generator and comprehensive insulation.

Operation and Control
Operated via proprietary software, the chamber enables autonomous cycle initiation, parameter setting and result retrieval. It features an intuitive touchscreen for easy programming of temperature, humidity and operation time, with timer countdown, alerts and reminders when a cycle is ready or finished. An interior surface drying system and a viewing window for monitoring humidity/water levels are included.

Key Features

• Combination cabinet for Ninhydrin and DFO (also supports Indandione).
• Ninhydrin development enabled at 80°C and 65% relative humidity.
• DFO and Indandione development enabled at 100°C in dry conditions.
• Dedicated software with intuitive touchscreen interface and autonomous cycle control.
• Temperature and humidity monitoring with precise control.
• Timer countdown with alerts and reminders.
• Interior surface drying system.
• Three perforated, removable shelves and hanging clips for sample handling.
• LED lighting for enhanced visibility.
• Viewing window on the humidity cabinet for monitoring water levels and an external water filling port.
• High-performance heating mechanism and humidity generator.
• Epoxy-coated metal structure with stainless steel interior and comprehensive insulation, including a double-glazed window for enhanced insulation and temperature stability.

Models
Spec/Model: ND-080
External Dimensions W x D x H: 730 x 600 x 1450 mm (28.7 x 23.6 x 57")
Internal Dimensions W x D x H: 600 x 450 x 550 mm (23.6 x 17.7 x 21.6")
Illumination: 2500 Lux / 100c Heating Protected
Power Supply: 230V 50 / 60 Hz
Control System: The standard control system is a 7" color display with on/off controls
Display: Electronic Display
Structure: Epoxy coated metal structure with stainless steel interior
Production / Test Standard: CE

caractéristiques / spécifications techniques

• Model: ND-080
• External dimensions (W×D×H): 730 × 600 × 1450 mm (28.7 × 23.6 × 57")
• Internal dimensions (W×D×H): 600 × 450 × 550 mm (23.6 × 17.7 × 21.6")
• Illumination: 2500 Lux
• Heating protection: 100c Heating Protected
• Power supply: 230V 50/60 Hz
• Control: 7" color touchscreen with proprietary software for autonomous cycles and parameter setting
• Display: Electronic display
• Structure: Epoxy coated metal exterior with stainless steel interior
• Insulation: Comprehensive insulation with double-glazed viewing window
• Humidity control: Built-in humidity generator; Ninhydrin at 80°C/65% RH; DFO and Indandione at 100°C in dry conditions
• Interior surface drying system
• Shelves: Three perforated, removable shelves
• Accessories: Hanging clips; LED lighting; external water filling port; viewing window for humidity monitoring
• Standards: CE
