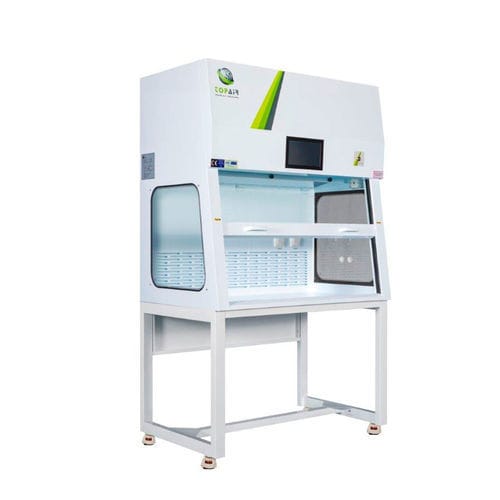

Chemical fume hood CF-060-PP

laboratoryfor forensicsbenchtop

Product overview
EN-14175 / ASHRAE 110. TopAir’s polypropylene Ductless Fume Hood provides a safe environment for lab staff working with a variety of chemicals. Our Ductless Fume Hood offers an air velocity display and alarm with a full Variable Air Volume (VAV) automatic speed adjustment to meet 100±20 fpm (0.5±0.1 m/s). This model is also equipped with a chemical VOC sensor and alarm to detect high levels of volatile compounds present in the filter for extra safety. TopAir’s Ductless Fume Hoods can be customized to meet size requirements as needed.

Structure

• 8 mm welded polypropylene with high chemical resistance
• Built-in sealed polypropylene worktop or choice of epoxy, stainless steel, ceramic, or Trespa high pressure compact laminates (HPLs)
• 5 mm safety front glass window with sliding front sash with counterweight
• Side windows for better visibility

Features

• 10.1” color touchscreen display
• VAV with air flow alarm and display
• VOC sensor and alarm
• Chamber alert light (red) for critical alarms
• High efficiency quiet ECM fan
• 800 lux LED lighting separated from the work area
• Adjustable air velocity 100±20 fpm (0.5 ± 0.1 m/s)
• Convenient front access for filter replacement
• Variety of HEPA filters, carbon filters, and pre-filters
• 10” (250 mm) exhaust point collar for connection to external exhaust
• Optional: metal stand or polypropylene base cabinet
• Certifications: EN-14175 / ASHRAE 110-1995, CE

Models (specifications table)
Spec / Model — CF-060-PP | CF-090-PP | CF-120-PP | CF-150-PP | CF-180-PP
Outer Dimensions W x D x H — 600 x 750 x 1223 mm (23.62 x 29.5 x 48”) | 900 x 750 x 1223 mm (35.4 x 29.5 x 48”) | 1200 x 750 x 1223 mm (47.24 x 29.5 x 48”) | 1500 x 750 x 1223 mm (59 x 29.5 x 48”) | 1800 x 750 x 1223 mm (70.8 x 29.5 x 48”)
Dimensions for XL model W x D x H (For XL models add –XL to P/N) — 600 x 750 x 1500 mm (23.62 x 29.5 x 59”) | 900 x 750 x 1500 mm (35.4 x 29.5 x 59”) | 1200 x 750 x 1500 mm (47.24 x 29.5 x 59”) | 1500 x 750 x 1500 mm (59 x 29.5 x 59”) | 1800 x 750 x 1500 mm (70.8 x 29.5 x 59”)
Workspace (W x D x H) — 585 x 590 x 695 mm (23 x 23.2 x 27.3”) | 885 x 590 x 695 mm (34.8 x 23.2 x 27.3”) | 1185 x 590 x 695 mm (46.6 x 23.2 x 27.3”) | 1485 x 590 x 695 mm (58.4 x 23.2 x 27.3”) | 1785 x 590 x 695 mm (70.2 x 23.2 x 27.3”)
Front Sash Max. Opening — 495 mm / 19.5” (applies to all models)
Test Standard — Comply: EN-14175 / CE / ASHRAE 110-1995
Air Velocity — 0.5±0.1 m/s, 100±20 fpm (all models)
Hood Material — 8 mm welded white polypropylene structure with built-in sealed polypropylene worktop (all models)
Noise — <52 dB (smaller models) up to <62 dB (largest model) — tested 20 cm (8”) from the worktable, 1.2 m (48”) above ground
Power Supply — 110/220 V, 50/60 Hz, Single phase
Illumination — 800 lux, eco-friendly LED lighting
Available Filter — Pre-filter & carbon filters for solvents, acids, bases, formaldehyde, multi gas (blend of materials) / HEPA
Optional accessories — XL model with 2 internal filters; Metal stand with casters; Polypropylene base cabinet; UV light; Gas taps; Water taps; Polypropylene cup sink; Polypropylene sinks; Electrical outlets; Clear back for educational purposes

Accessories (models and description)

• CF-GTAP — Gas tap
• CF-PP-SINK — Polypropylene cup sink
• CF-SINK-3040 — Polypropylene sink 30 x 40
• CF-size-BS — Polypropylene base cabinet
• CF-size-ST — Metal Stand
• CF-SOCKET — Power outlet installed
• CF-UV — UV Light
• CF-WTAP — Water tap

Caractéristiques / spécifications techniques

• Standards: EN-14175, ASHRAE 110-1995, CE
• Air velocity: adjustable to 0.5 ± 0.1 m/s (100 ± 20 fpm) via VAV system
• VOC sensor and alarm for monitoring filter volatile compounds
• 10.1” color touchscreen for control and display
• Chamber alert light (red) for critical alarms
• High efficiency ECM fan (quiet operation)
• LED work illumination: 800 lux, separated from work area
• Construction: 8 mm welded polypropylene, sealed polypropylene worktop (alternative worktop materials available)
• Front sash: 5 mm safety glass, sliding sash with counterweight; max opening 495 mm
• Exhaust collar: 10” (250 mm) exhaust point collar for optional external connection
• Filters: configurable combinations of pre-filters, carbon filters (for solvents, acids, bases, formaldehyde, multi-gas), and HEPA
• Noise: <52–62 dB depending on model (measured 20 cm from worktable, 1.2 m above ground)
• Power: 110/220 V, 50/60 Hz, single phase
• Customisation: available in multiple standard widths and XL variants; many optional accessories including stands, cabinets, taps, sinks, UV, outlets
