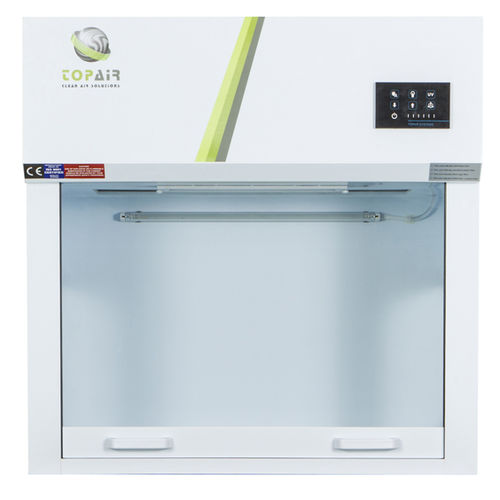

Chemical clean bench PCR-060-UV

decontaminationfor PCRpolypropylene

Overview
Polypropylene PCR-UV cabinets (dead box) provide a dedicated workspace for UV decontamination in genomics, proteomics, molecular biology and forensic laboratories. Constructed from non-corrosive polypropylene, these cabinets offer chemical resistance, improved tensile strength and favorable thermal properties. Controls and safety features are tailored for routine laboratory use.

Structure

• 8 mm welded polypropylene body with high chemical resistance
• 5 mm safety front glass window
• Side windows for improved visibility

Features

• Microprocessor control with 7" color touchscreen
• Germicidal UV lamp (254 nm) with safety interlock
• Programmable UV timer
• 800 lux LED illumination
• Optional matching stand

Video
Product demonstration video available on the product page.

Models
Spec / Model — PCR-060-UV — PCR-090-UV — PCR-120-UV
External Dimensions W x D x H — 600 x 640 x 750 mm — 900 x 640 x 750 mm — 1200 x 640 x 750 mm
Workspace (W x D x H) — 580 x 450 x 550 mm — 880 x 450 x 550 mm — 1180 x 450 x 550 mm
Front Sash Max Opening — 500 mm — 500 mm — 500 mm
Filter — None
Cabinet Material — Polypropylene
Worktop Material — Polypropylene
UV light — 17 W ozone-free, 254 nm
Power Supply — 110 / 220 V, 50/60 Hz, single phase
Illumination — 800 lux LED lighting

Accessories

• Stand PCR-060-ST — 600 x 640 x 802 mm
• Stand PCR-090-ST — 900 x 640 x 802 mm
• Stand PCR-120-ST — 1200 x 640 x 802 mm

Technical specifications

• Material: Non-corrosive polypropylene, 8 mm welded
• Front safety glass: 5 mm
• Side windows for improved visibility
• Germicidal UV: 17 W, 254 nm, ozone-free, safety interlock
• Control: Microprocessor with 7" color touchscreen
• Programmable UV timer
• Illumination: 800 lux LED
• Power supply: 110 / 220 V, 50/60 Hz, single phase
• Filter: None (dead box design)
• Available widths: 600 mm (PCR-060-UV), 900 mm (PCR-090-UV), 1200 mm (PCR-120-UV)
• Workspace depths/heights vary by model (see Models section)
