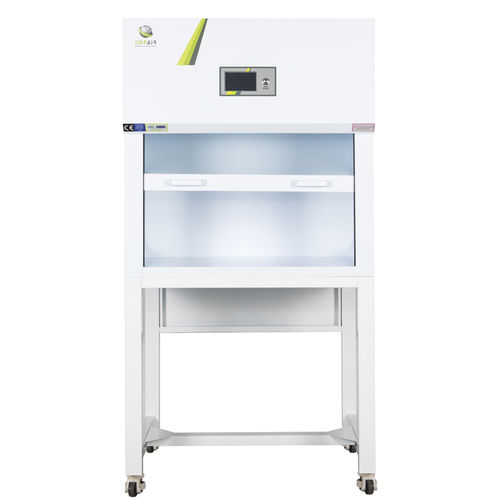

Chemical clean bench PCR-060-HEPA

laboratoryfor research laboratoriesfor DNA and RNA preparation

Overview
TopAir’s polypropylene PCR-HEPA cabinets provide a high-performance filtration solution to protect PCR workflows and sensitive applications from contamination. Constructed from welded, chemical-resistant polypropylene, these cabinets are intended for use in genomics, proteomics, molecular biology and forensic laboratories.

Structure

• 8 mm welded polypropylene with high chemical resistance
• 5 mm safety front glass window
• Side windows for improved visibility

Features

• Microprocessor control system with 7" colour touchscreen display
• H14 HEPA filter, efficiency 99.9995% @ 0.3 μm
• Fan control with 10 speeds
• Germicidal UV light (254 nm) with safety interlock
• Programmable UV timer
• 800 lux LED illumination
• Air velocity: 0.33 m/s (66 FPM)
• High-efficiency quiet EC fan
• Optional stand available
• Cleanliness: ISO 6 / CLASS 1000 (ISO 14644-1 / US Federal Standard 209E)
• CE certified

Models
Spec / Model | PCR-060-HEPA | PCR-090-HEPA | PCR-120-HEPA
External Dimensions W x D x H | 600 x 640 x 950 mm (23.6 x 25.2 x 37.4") | 900 x 640 x 950 mm (35.4 x 25.2 x 37.4") | 1200 x 640 x 950 mm (47.2 x 25.2 x 37.4")
Workspace (W x D x H) | 585 x 450 x 590 mm (23 x 17.7 x 23.2") | 885 x 450 x 590 mm (34.8 x 17.7 x 23.2") | 1185 x 450 x 590 mm (46.6 x 17.7 x 23.2")
Front Sash Max Opening | 450 mm (17.7") (all models)
Production / Test Standard | US Federal Standard 209E / ISO 14644-1, CE
Air Velocity | 0.33 m/s (66 FPM)
Hood & worktop Material | Polypropylene
Filter | H14 HEPA filter, efficiency 99.9995% @ 0.3 μm
Noise (measured 20 cm from worktop, 1.2 m above floor) | < 52 dB
UV light | 17 W ozone-free, 254 nm
Power Supply | 110 / 220 V, 50/60 Hz, single phase
Illumination | 800 LUX LED lighting

ACCESSORIES
Model | Description
Stand PCR-060-ST | 600 x 640 x 802 mm (24 x 25.2 x 31.57")
Stand PCR-090-ST | 900 x 640 x 802 mm (36 x 25.2 x 31.57")
Stand PCR-120-ST | 1200 x 640 x 802 mm (48 x 25.2 x 31.57")

Technical specifications

• Microprocessor control with 7" colour touchscreen
• H14 HEPA filter: 99.9995% efficiency @ 0.3 μm
• Fan control: 10 speeds
• Germicidal UV: 254 nm, 17 W ozone-free, safety interlock, programmable timer
• Air velocity: 0.33 m/s (66 FPM)
• Illumination: 800 lux LED
• High-efficiency quiet EC fan
• Hood & worktop: welded polypropylene (8 mm)
• Front sash: 5 mm safety glass, max opening 450 mm
• Cleanliness: ISO 6 / CLASS 1000 (ISO 14644-1 / US Federal Standard 209E)
• Power supply: 110 / 220 V, 50/60 Hz, single phase
• Available models: PCR-060-HEPA, PCR-090-HEPA, PCR-120-HEPA
• Optional stands: PCR-060-ST, PCR-090-ST, PCR-120-ST
