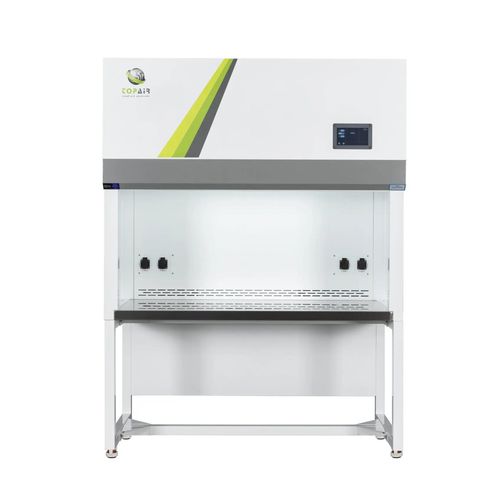

Laboratory clean bench HC-V090

for clean roomsfor research laboratorieson casters

Description
TopAir’s Value Line metal Vertical Laminar Clean Benches create a controlled, Class 100 / ISO 5 workstation by drawing room air, filtering it through an H14 HEPA filter and directing vertical laminar airflow across the work area. Units are factory-tested to USA Federal Standard 209E / ISO 14644-1 / CE and can be customised for specific industrial or laboratory needs.

Structure

• Metal hood with epoxy-coated paint
• Work surface: stainless steel SUS 304
• Side windows: tempered glass
• Front sliding sash with counterweight

Red Light Alert
If air velocity falls below set limits a red indicator illuminates and the system automatically shuts down, enabling remote visual fault detection and easier notification including for hearing-impaired operators.

Features

• Microprocessor control with 7” color touchscreen
• EC fan with 10-speed control for precise airflow
• Airflow display and alarm; filter replacement alarm
• High-efficiency quiet fan
• Germicidal waterproof UV (254 nm) with safety interlock
• 800 lux LED illumination
• 2 universal electrical outlets
• Metal stand with casters for mobility
• Multi-language control; metric or Imperial units
• Certifications: USA Federal Standard 209E / ISO 14644-1 / CE
• Optional: Integrated Particle Monitoring System (IPMS); optional ULPA filter

Models (dimensions and key data)
Spec / Model | HC-V090 | HC-V120 | HC-V150 | HC-V180
Outer Dimensions W x D x H | 35.4*33.4*51.9” / 900*850*1220 mm | 47.2*33.4*47.2” / 1200*850*1220 mm | 59*33.4*47.2” / 1500*850*1220 mm | 70.8*33.4*47.2” / 1800*850*1220 mm
Workspace (W x D x H) | 30.3*24.4*23.6” / 770*620*600 mm | 42.1*24.4*23.6” / 1070*620*600 mm | 53.9*24.4*23.6” / 1370*620*600 mm | 65.7*24.4*23.6” / 1670*620*600 mm
Test Standard | USA Federal Standard 209E / ISO-14644-1 / CE
Air Velocity m/s | 0.33 m/s, 66 fpm
Cleanliness in Workstation | Class-100 (FS 209E) ISO-5, ISO-14644-1
Hood Material | Metal epoxy-coated paint
Worktop Material | Stainless steel SUS 304
Noise Level (tested 20 cm from worktop, 1.2 m / 48” above ground) | <52dB (HC-V090), <54dB (HC-V120), <56dB (HC-V150), <56dB (HC-V180)
Power Supply | 110 / 220 V, 50/60 Hz, Single phase
Illumination | 800 lux LED lighting
Filters | HEPA H14 (99.9995% at 0.3 µm); ULPA optional

Technical specifications

• Cleanliness class: Class 100 / ISO 5 (FS 209E / ISO-14644-1)
• Air velocity at work area: 0.33 m/s (66 fpm)
• HEPA filter: H14, 99.9995% at 0.3 µm (ULPA optional)
• Worktop: Stainless steel SUS 304
• Hood material: Metal with epoxy-coated paint
• Illumination: 800 lux LED
• Noise level: <52–56 dB depending on model
• Power supply: 110/220 V, 50/60 Hz, single phase
• Control: Microprocessor with 7” color touchscreen; multi-language; metric/imperial units
• Fan: High-efficiency quiet EC fan with 10-speed control
• UV: Germicidal waterproof UV 254 nm with safety interlock
• Outlets: 2 universal electrical outlets
• Mobility: Metal stand with casters
• Optional: Integrated Particle Monitoring System (IPMS)
