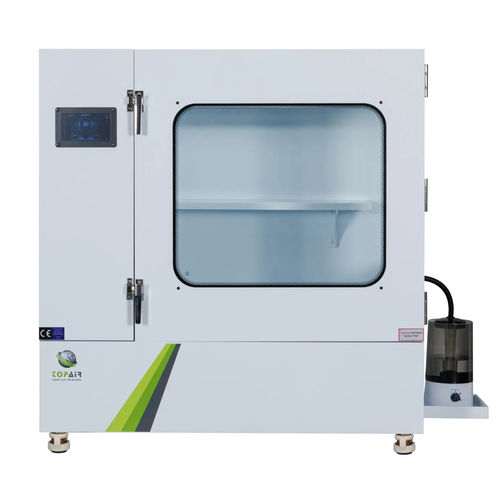

Fingerprint development test chamber SG series

for forensic applicationsfloor-standing

Product Overview
TopAir’s Cyanoacrylate Fuming Chamber, also known as a Fingerprint Development System, is designed to develop latent prints on non-porous surfaces in a controlled enclosure. Cyanoacrylate is placed inside the chamber while evidence is arranged on adjustable hanging rods. Starting a cycle triggers the automated system which controls the hotplate, humidity level, door lock, internal circulation fan and purge cycle.

Features

• Control system displays all parameters of the processing cycle
• Three built-in programs plus one user-programmable slot
• Automatic or manual activation; optional temperature and humidity control
• Filtration with a carbon main filter and prefilter
• Energy-saving LED illumination
• End-of-cycle alarm and 10-second audio-visual warning
• CE certified
• Optional chemical sensor for enhanced safety

Models (summary)
Spec/Model | SG-075-P | SG-090-P | SG-120-P | SG-150-P | SG-180-P
External Dimensions W x D x H | 760 x 710 x 1270 mm (30 x 28 x 50'') | 910 x 710 x 1270 mm (36 x 28 x 50'') | 1220 x 710 x 1270 mm (48 x 28 x 50'') | 1520 x 710 x 1270 mm (60 x 28 x 50'') | 1830 x 710 x 1270 mm (72 x 28 x 50'')
Noise* | <48 dBA | <48 dBA | <48 dBA | <48 dBA | <48 dBA
Illumination | LED 18 W | LED 18 W | LED 18 W | LED 18 W | LED 18 W
Main Filter (Qty.) | 5 kg | 5 kg | 7 kg | 8 kg | 8 kg
Prefilter (Qty.) | 1 | 1 | 1 | 1 | 1
Power Supply | 115 / 230V 50/60 Hz, single phase (applies to all models)
Switches | Main ON/OFF (applies to all models)
Monitoring | Electronic display (applies to all models)
Fan | Low-noise centrifugal (applies to all models)
Structure | Polypropylene body with safety triplex glass (applies to all models)
Production/Test Standard | CE (applies to all models)

Accessories

• SG-CF — Main Filter
• SG-PF — Pre Filter

Technical specifications

• Control system: displays processing parameters and supports three built-in programs plus a user program
• Automatic/manual operation with optional temperature and humidity control
• Recirculatory, ductless design for easy installation and transport
• Vapour filtration: carbon main filter plus prefilter (main filter capacity varies by model)
• Illumination: LED 18 W
• Safety: end-of-cycle alarm and 10-second audio-visual alarm
• Low-noise centrifugal fan (measured <48 dBA at specified test point)
• Power supply: 115 / 230V 50/60 Hz, single phase
• Structure: polypropylene body with safety triplex glass
• Monitoring: electronic display for cycle parameters
• Standards: CE certified
• Optional: chemical sensor for enhanced safety
• Available models & external dimensions: SG-075-P (760 x 710 x 1270 mm), SG-090-P (910 x 710 x 1270 mm), SG-120-P (1220 x 710 x 1270 mm), SG-150-P (1520 x 710 x 1270 mm), SG-180-P (1830 x 710 x 1270 mm)
• Notes: Noise measured 20 cm from the work table, 1.2 m above ground; optional elevated height variant available (add T to C/N)
