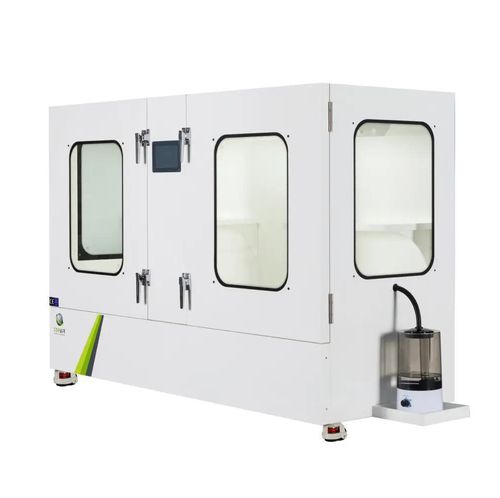

Thermostatic test chamber SG-075-WF

climatichumiditytemperature

Description
TopAir's Cyanoacrylate Fuming Chamber is designed to develop latent fingerprints from non-porous surfaces in a controlled, ductless environment. Cyanoacrylate is placed inside the chamber while evidence is positioned on adjustable hanging rods. Starting the cycle triggers automated control of the hotplate, humidity level, door lock, internal circulation fan and purge cycle. The recirculatory, ductless design allows operation without external ducting and facilitates transport.

Features

• Electronic control system displaying all cycle parameters; 3 preset programs plus one user program.
• Automatic or manual activation with optional temperature and humidity control.
• Cyanoacrylate vapors captured and filtered by a water-filtration system; contaminated air is purged through the water filter.
• Low-noise centrifugal internal fan and LED 18 W illumination.
• Audio-visual end-of-cycle alarm (30 seconds) and automatic cycle-end indicator.
• Optional chemical sensor for enhanced safety.
• CE certified.

Models / Dimensions (table)
Spec/Model — SG-075-WF — SG-090-WF — SG-120-WF — SG-150-WF — SG-180-WF
External Dimensions (W x D x H) — 760 x 710 x 1270 mm (30 x 28 x 50') — 910 x 710 x 1270 mm (36 x 28 x 50'') — 1220 x 710 x 1270 mm (48 x 28 x 50'') — 1520 x 710 x 1270 mm (60 x 28 x 50'') — 1830 x 710 x 1270 mm (72 x 28 x 50'')
Noise* — <53 dBA — <53 dBA — <53 dBA — <53 dBA — <53 dBA
Illumination — LED 18 W — LED 18 W — LED 18 W — LED 18 W — LED 18 W
Power Supply — 115 / 230 V 50/60 Hz, single phase (applies to all models)
Switches — Main ON/OFF (applies to all models)
Monitoring — Electronic display (applies to all models)
Fan — Low-noise centrifugal (applies to all models)
Structure — Polypropylene structure with safety triplex glass (applies to all models)
Production/Test Standard — CE (applies to all models)
* Tested 20 cm from the work table, 1.2 m above ground
Optional: for elevated height size -75" add T to the end of the C/N

Technical specifications

• Application: development of latent fingerprints from non-porous surfaces in a controlled, ductless chamber.
• Filtration: water-filtration system for cyanoacrylate vapors (recirculatory, ductless operation).
• Control & Automation: electronic control system with display, 3 preset programs + user program, automatic/manual activation, temperature and humidity control options, door lock and purge cycle control.
• Safety: CE certified; optional chemical sensor; audio-visual end-of-cycle alarm (30 seconds).
• Illumination: LED lighting, 18 W.
• Acoustics: noise level tested <53 dBA (measured 20 cm from work table, 1.2 m above ground).
• Construction: polypropylene body with safety triplex glass.
• Ventilation: low-noise centrifugal internal fan (recirculatory).
• Power: 115 / 230 V, 50/60 Hz, single phase.
• Models: SG-075-WF, SG-090-WF, SG-120-WF, SG-150-WF, SG-180-WF.
