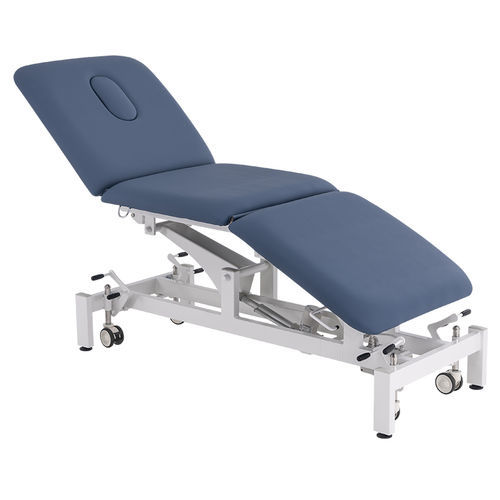

Electric examination table YK-OT002

height-adjustablerecliningwith adjustable backrest

Product description

• Electric examination table with integrated iron/steel frame and motorized height/angle adjustment for clinical use
• Height adjustment by medical motor and oil-pressure spring; caster lift switch allows fixed/shift modes
• Antibacterial upholstery with high-density slow-rebound foam for patient comfort
• Optional mobility: 4 castors with brake; face opening included

Functions

• Height (without wheels): 470-910 mm
• Height (with wheels): 510-950 mm
• Backrest: -40° to 90° (backrest down fold: 40°)
• Legrest: -40° to 50° (legrest down fold: 45°)
• Foot pedal controller
• 4 castors with brake (when equipped)
• Medical motor: 1 pc
• Color: blue
• Face hole: 1 pc

Table
size: L1950×700×460-910 mm (L×W×H)
backrest adjust: -40°–90°
HI-LOW: 460-910 mm
legrest: -40°–50°

Technical specifications

• Model: YK-OT002
• Overall size: 1950×700×460-910 mm
• Height range (without wheels): 470-910 mm
• Height range (with wheels): 510-950 mm
• HI-LOW (table entry): 460-910 mm
• Backrest adjustable range: -40° to 90° (backrest down fold: 40°)
• Legrest adjustable range: -40° to 50° (legrest down fold: 45°)
• Drive: medical motor + oil-pressure spring
• Frame: integral iron / high-quality steel bed for firmness and stability
• Switch: caster lift switch (fixed/shift mode)
• Upholstery: antibacterial leather with high-density slow-rebound foam
• Control: foot pedal controller
• Wheels: 4 pcs with brake (when equipped)
• Accessory: face hole (1 pc)
• Color: blue
