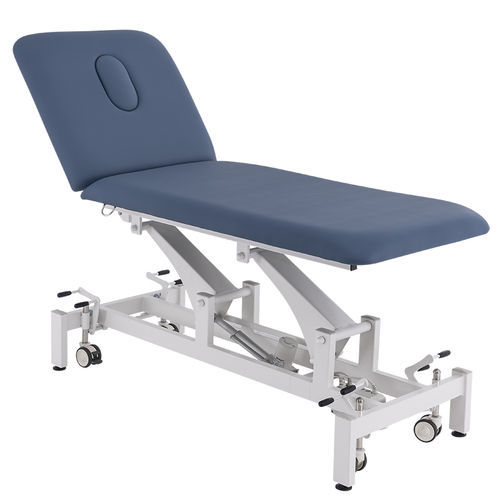

Electric examination table YK-OT001

on castersrecliningwith adjustable backrest

Functions:

• Height without castors: 480-920 mm
• Height with castors: 510-950 mm
• Backrest angle: 0°-80° (adjustable)
• Backrest down fold: 15°
• Foot pedal controller for adjustments
• 4 castors with brake
• Medical motor(s): 1 pc
• Face hole: 1 pc
• Color: blue
• Maximum recommended user weight: 180 kg

Precautions:

• Before use, confirm all parts are present and the table is stable to ensure safe operation.
• Ensure the patient's weight does not exceed the maximum recommended load of 180 kg.
• Intended for indoor use.
• Lock all four castors before positioning or transferring a patient.
• When using mains power, follow the product's electrical safety instructions and local regulations.

Motorized controls:

• Motorized backrest adjustment (operational range reported per controller): 0° to 75°
• Motorized footrest adjustment: 0° to 45°
• Motorized bed elevating stroke: 450 mm to 740 mm (motorized)
• Refer to the user manual for safe operation of the controls.

Product parameters:
Size (L×W×H): 1950 × 700 × 460-910 mm
Backrest adjust: -20° to 80° (reported in technical sheet)
HI-LOW: 460-910 mm

Features / Technical specifications:

• Model: YK-OT001
• Overall size (L×W×H): 1950 × 700 × 460-910 mm
• Height without castors (reported): 480-920 mm
• Height with castors (reported): 510-950 mm
• Backrest angle range: 0°-80° (parameter sheet also indicates -20° to 80°)
• Backrest down fold: 15°
• Motorized backrest control (per controller): 0° to 75°
• Motorized footrest range: 0° to 45°
• Motorized elevating stroke: 450 mm to 740 mm (motorized), HI-LOW listed as 460-910 mm
• Wheels: 4 pcs with brake
• Controller: foot pedal controller; motorized adjustments
• Motors: 1 medical motor
• Face hole: 1 pc
• Color: blue
• Maximum recommended user weight: 180 kg
• Recommended use: indoor clinical environments
