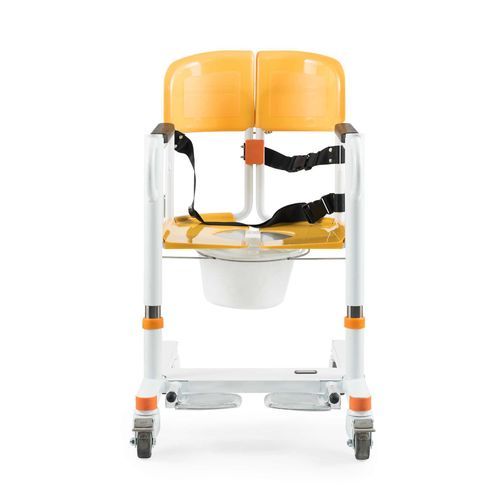

Indoor transfer chair YK-TC002

rotatingliftheight-adjustable

Overview
The YK-TC002 transfer chair is a medical transfer solution with one-touch vertical lifting, designed for safe, space-efficient transfers between seating surfaces of varying heights. It is intended for clinical environments where secure patient repositioning and caregiver ergonomics are required.

Key dimensions & capacity
Overall size: 750 × 549 × 975 mm (L×W×H). Safe working load (SWL): 150 kg. Standard net weight: 29 kg. Seat size: W470 × D450 mm (some sections reference seat width as 450 mm). Elevation range: 450–560 mm (documents indicate 450–550 mm or 460–560 mm depending on configuration).

Patient-focused features

• Encircling ergonomic frame with full-height PP back panel supported by a steel frame.
• PU armrests for comfort; aluminum alloy footplate (set of two) for durability.
• Crank-controlled platform lift available on either side; plastic detachable crank handle storable in chair case.
• Backrest opening/closing design reduces need for manual lifting by staff; backrest can open and swivel 360°.
• Fasten lock system: 50 mm nylon safety belt with quick-clip for dual protection.
• Four castors (3-inch): front wheel directional lock, rear wheel universal for maneuverability in confined spaces.
• Optional removable commode set placed under the chair; optional toilet-hole extraction plate for patient comfort.

Technical specifications

• Model name: Transfer Chair
• Item No.: YK-TC002 (also referenced as YK-TC001B in some documentation)
• Overall dimensions (L×W×H): 750 × 549 × 975 mm
• Seat size: W470 × D450 mm (alternate references to seat width 450 mm)
• Seat elevation system: Vertical jack system; elevation unit 100 mm; adjustable seat height via crank (documented ranges 450–550 mm or 460–560 mm)
• Safe working load: 150 kg
• Standard net weight: 29 kg
• Back panel: PP plastic with steel frame support; back support frame openable and swivel 360°
• Seat panel: Steel powder-coated with full ABS cover
• Armrests: PU
• Footrest: Aluminum alloy, set of two
• Crank handle: Plastic, detachable and storable
• Front push handle: Detachable and shortenable (2 pcs; pin installation required)
• Back push handle: 2 pcs (if supplied; pin installation required)
• Castors: 4 pcs, 3 inches; front wheel lock directional, rear wheel universal
• I.V. rod holder: Welded rod, 1 pc
• Fasten lock system: Nylon belt, 50 mm width with lock
• Warranty: One year after shipment

Accessories & installation
Supplied components may require simple assembly on receipt: back panel (1 set, 2 pcs) fixed with screws; front/back push handles assembled with pins; vertical jack system and crank handle require final fastening. The detachable commode, IV rod holder and optional toilet-hole plate are available as configured.

Compliance & use recommendations
Designed for institutional use (hospitals, nursing homes, clinics). Follow local infection control protocols for cleaning ABS, PP and PU surfaces. Verify installation and secure all fastenings before clinical use; confirm SWL and seat settings for each patient application.
