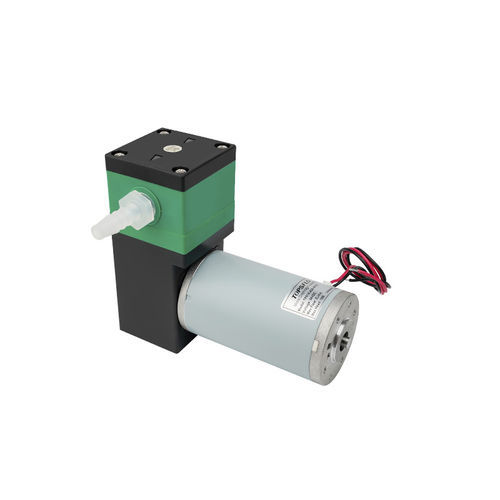

Hemodynamic simulation pump TF51-A

electricfor liquidscompact

Mini Diaphragm Liquid Pump TF51-A Motor Type:Brushless DC motor Max flow rate:3L/Min Water lift:10M Voltage:12V 24V Ideal Life Time:3000 Hours Functions:Can dry-running, Self-priming ■ Overview TOPSFLO micro diaphragm liquid /vacuum pumps are based on a simple principal,the circular power from the motor is converted into oscillating movement by aneccentric, which moves up and down its central point, this motion is then transferredto a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action. The TF51 Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient. TF 51 pumps can be mounted in any position and can deliver up to 3 l/min depending on the model and will operate against pressures of up to 10M. Application: IVD in vitro diagnostic equipment Automatic biochemical analysis Immunoassay genetic analysis blood analysis Urinalysis Beauty equipment Patient Monitoring Microplate Washer Surgical equipment Therapeutic equipment Get a product catalog, please contact us ！ http://www.topsflo.com/mini-liquid-pumps/tf51-a.html
