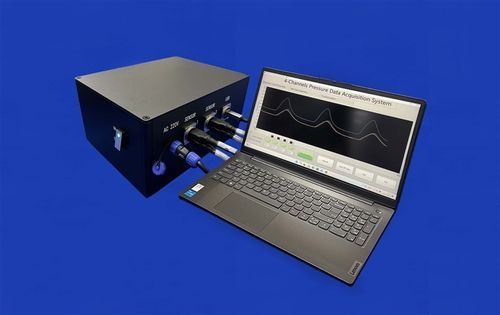

Laboratory biosignal acquisition system PM-FCP4

for research4-channel8-channel

Product overview
The PM-FCP4 hemodynamic data acquisition system collects, analyzes and stores multi-site blood pressure and blood flow data, plots corresponding waveforms and provides clear visual outputs. Note: Flow monitoring requires a customized configuration with the manufacturer's dedicated flowmeter.

Key features

• Modular, integrated design for hemodynamic analysis
• Synchronous acquisition and processing of blood pressure and blood flow signals
• Available configurations: 4-channel (PM-FCP4) and 8-channel options to support multi-point data collection

Applications
Designed for acquisition, waveform plotting and display of vascular model blood pressure and flow data; suitable for laboratory research, device testing and hemodynamic studies.

Sales & Logistics
Model: PM-FCP4
Payment: T/T
Shipping time: 7 days
Lead time: 7-15 days
Shipping methods: FedEx, DHL, EMS, UPS, TNT

Dimensional drawing
Dimensional drawings and product images are provided for reference.

Technical specifications

• Item: Physiological Data Acquisition System
• Model: PM-FCP4
• Equipment weight: 3 kg
• Equipment dimensions: 270 × 215 × 140 mm
• Operating power (continuous): 90 W
• Input voltage: AC 220 V, 50/60 Hz
• Measurement accuracy: Blood pressure: 0.5%; Blood flow: 2%
