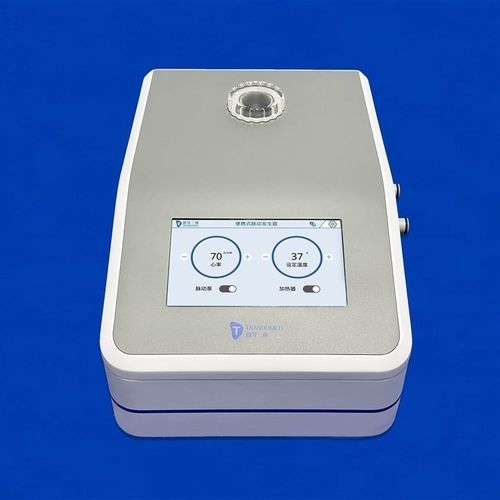

Pulsatile pump EDU-P120Pro

laboratoryfor medical simulationhemodynamic simulation

Product overview
The portable pulsatile pump EDU-P120Pro simulates cardiac pulsation, blood flow and pressure for hemodynamic demonstration and training. Key parameters including pulsation frequency, temperature, flow rate, pressure and waveform are adjustable to reproduce physiological and test conditions.

Main features

• Compact and portable design for lab or training room use
• 8-inch 1920×1080 touch display with intuitive interface
• Eight selectable output waveforms and adjustable pulsation frequency (20–200 BPM)
• Two-channel pressure sensing with real-time waveform display
• Dual-mode operation: pulsatile and constant flow; wireless control via APP or remote

Applications

• Hemodynamic simulation for interventional device demonstration
• Cardiovascular training and procedural rehearsal
• Medical education, preclinical research and device performance testing

Technical specifications

• Device name: Pulsatile Pump
• Model: EDU-P120Pro
• Input voltage: AC 220 VAC 50/60 Hz
• Dimensions: 260 × 385 × 165 mm
• Circulating rated power: 80 W
• Device weight: 4.7 kg
• Heat load power: 380 W
• Water tank capacity: 2.6 L
• Display: 8.0-inch touch screen, 1920×1080
• Supported circulating fluids: deionized water, saline, PBS
• Pulsation frequency: 20–200 BPM (adjustable)
• Waveform options: 8 selectable output waveforms
• Flow range at pulsation outlet: 1–10 L/min (adjustable)
• Languages: English, Chinese
• Temperature range: ambient to 45°C (adjustable)
• Interface: C-type quick connector
• Pressure monitoring: two-channel pressure monitoring
• Modes: pulsatile and constant flow dual-mode
• Pressure range: systolic/diastolic range 1–100%
• Control: supports APP and remote control
