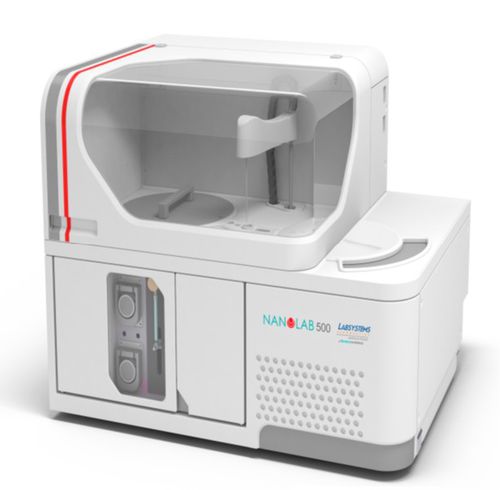

Automatic biochemistry analyzer Nanolab 500

benchtoprandom access

Fully Automatic Random Access Bench Top Clinical Chemistry Analyzer TECHNICAL SPECIFICATIONS THROUGHPUT Up to 300 photometric tests/hr or up to 480 tests/hour with optional ISE module SAMPLES AND REAGENT Samples Sample volume: 2 to 100 μl/test (in increments of 1 μl). Sample tray: 95 (5 racks x 19 positions). Primary tube (length up to 100 mm) Pediatric vial Reagents Reagent tray: up to 72 single reagents Multiple vials per test Refrigerated compartment at 8 °C ± 1 °C SAMPLES AND REAGENT HANDLING Pipetting Arm:One pipetting arm for sample and reagent, including reaction preheater, probe collision sensor, capacitive level sensor and reaction mixer. Probe cleaning : Internal and external REACTION Water consumption : 1.5 l / hour (deionized) Reaction cuvette: 80 re-usable plastic cuvettes.Optical length: 6 mm Reaction volume: 180-500 μl Warm air incubator: 37 °C Reaction time : 0 to 10 min. Washing station: 6 stages OPTICAL SYSTEM Light source: Precision UV quartz halogen lamp Photometric range: -0.1 to 3 A Measuring wavelength: 340, 380, 405, 450, 490, 505, 550, 590, 620, 650, 700, 750 nm Photometry: single or double-wavelength simultaneous reading ANALYTICAL MODES Full random access or batch mode operation with STAT sample priority function Multiple methodology options- End point, Kinetic, Coagulation, Calculated, Turbidimetry, enzymes and Drugs of Abuse. Choice of calibration options- Linear, Multilinear, Sigmoid, Logit-log ( 4 & 5 point) & spline Automatic sample dilution and reflex testing
