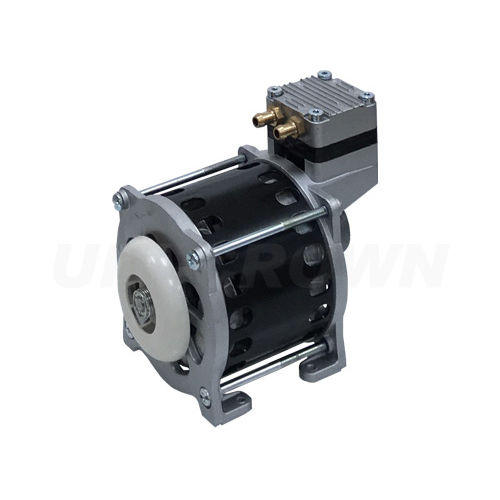

Medical vacuum pump UN-36Y
oil-free

medical vacuum pump
medical vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
medical
Options
oil-free
Flow

23 l/min, 25 l/min
(6.08 us gal/min, 6.6 us gal/min)

Power

125 W
(0.17 hp)

Pressure

Max.: 2 bar
(29.01 psi)

Description

Feature: Can be used as vacuum pump Oilless operation, Low noise level Compact design Application: Cupping machine, Various application Plate-making machine Rated Voltage - V - AC 110 or 220 Vacuum - mmHg - 620 Pressure - kgf/cm2 - 2 Open Flow - LPM - 25(60Hz) / 23(50Hz) Power Consumption - W - 125 Dimension - mm - 145 x 94 x 128.3 Installation Size - mm - 46 x 78 x M5 Hose Suggestion - mm - Φ 6 Weight - kg - 1.9
