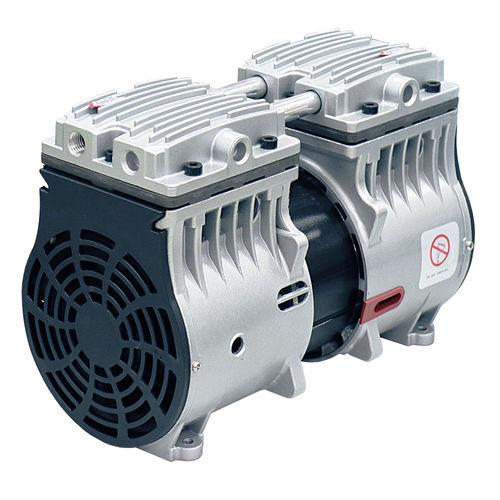

Medical vacuum pump UN-120VH
oil-free

medical vacuum pump
medical vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
medical
Options
oil-free
Flow

Max.: 60 l/min
(15.85 us gal/min)

Power

Max.: 300 W
(0.41 hp)

Description

Feature: Oil-less Vacuum Pump Compact design Low noise level Motor mounted with thermo protection Rugged construction/low maintenance CE / RoHS Certification, All Wetted Aluminum Low Vibration, One Year Warranty Provided Application: Semiconductor automation equipment Vacuum packing, Labeling machine, Robotic arms Various instruments, medical equipment, LED test machine, Automation equipment, Exposure machine, Labeling Machine, Robotic arms Rated Voltage - V - AC 110 or 220 Vacuum - mmHg - 740 Open Flow - LPM - 60(60Hz) / 58(50Hz) Power Consumption - W - 300 Dimension - mm - 250 x 128 x 185 Installation Size - mm - 203.5 x 89 x M6 I.D. of screw thread -   - 1/4"PT牙 Weight - kg - 8.6
