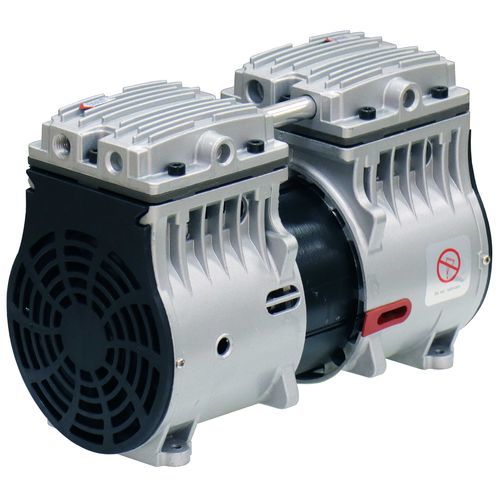

Medical vacuum pump UN-90VH
oil-free

medical vacuum pump
medical vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
medical
Options
oil-free
Flow

Max.: 45 l/min
(11.89 us gal/min)

Power

Max.: 250 W
(0.34 hp)

Description

Feature: Oil-less Vacuum Pump Compact design Low noise level Motor mounted with thermo protection Rugged construction/low maintenance CE / RoHS Certification, All Wetted Aluminum Low Vibration, One Year Warranty Provided Application: Semiconductor automation equipment Vacuum packing, Labeling machine, Robotic arms Various instruments, medical equipment, automatic machines, etc. Rated Voltage - V - AC 110 or 220 Vacuum - mmHg - 740 Open Flow - LPM - 45(60Hz) / 40(50Hz) Power Consumption - W - 250 Dimension - mm - 250 x 128 x 180 Installation Size - mm - 203.5 x 89 x M6 I.D. of screw thread -   - 1/4"PT Weight - kg - 7.7
