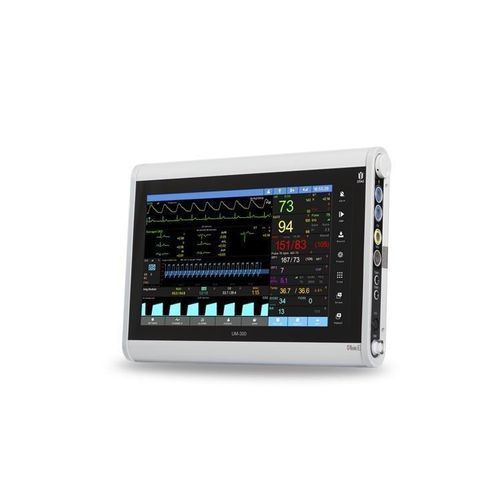

Compact multi-parameter monitor UM 300-15-S

bedsideECGSpO2

Overview
UM 300-15-S patient monitor with 15" HD display is an optimal solution for stationary installation in hospital environments. Compact size and comprehensive functionality make it suitable for wards, ICU, OR and other clinical areas where continuous monitoring is required.

Why UM 300-15-S is special

• Optimized for stationary hospital installation
• Balanced compact footprint and functional scope
• Configurable for use across multiple clinical departments

Mounting solutions / Mounting options
Multiple mounting accessories are available for UM 300-15-S. The supplied configuration depends on order specification and selected options.

• Mobile cart with basket
• Adjustable wall arm
• Wall arm with basket
• Rail mount for medical rail
• Mount for vertical rack

Channels & UniPort — Basic and Extended configuration
Configure monitoring to match clinical needs. Basic configuration includes essential parameters for routine patient surveillance:

• ECG
• SpO2
• CO2
• Multigas
• Heart rate
• Respiratory rate
• NIBP
• Temperature

Extended capabilities are provided via UniPort™ modules to add measurement channels without external consoles.

UniScreen™ (extended visualization)
Expand visualization space with additional displays to improve data readability and workflow.

• Group and display key vital signs on an auxiliary monitor (no simple duplication)
• Customizable data layout for optimal positioning and grouping
• Support for an optional 22" HD display for enhanced situational awareness
• Specialized views for cardiology, neonatology, anesthesiology and hemodynamics; main unit retains control of parameters, trends, event logs and calculations

Automated Anesthesia Record
Integrated automated anesthesia record logs intraoperative events and supports anesthesiologist workflow.

• Record operative events and patient responses
• Log drug administration and doses
• Generate PDF reports from recorded data
• Trend monitoring: NIBP, Temperature, HR, BIS™, NMT, EtCO2

Design and maintenance
User-oriented design for efficient operation and easy maintenance.

• Intuitive user interface
• Ultra-thin housing
• Durable aluminium casing
• Fanless, fully passive cooling
• Easy to clean and disinfect

Additional notes
UM 300-15-S supports modular expansion via UniPort™ and can be combined with auxiliary displays and a variety of mounting accessories. Final scope of supply depends on order specification.

Technical specifications

• Model: UM 300-15-S
• Manufacturer / Brand: UTAS
• Display: 15" HD main display
• Intended use: Stationary patient monitoring for hospital environments
• Basic monitoring parameters: ECG, SpO2, CO2, Multigas, Heart rate, Respiratory rate, NIBP, Temperature
• Extended configuration: UniPort™ modules for additional channels
• Visualization: UniScreen™ support; optional additional 22" HD display
• Automated anesthesia record: event logging, drug administration logging, PDF report generation, trends (NIBP, Temp, HR, BIS™, NMT, EtCO2)
• Design: ultra-thin aluminium casing, fanless passive cooling
• Mounting options: mobile cart, adjustable wall arm, wall arm with basket, rail mount, vertical rack mount
