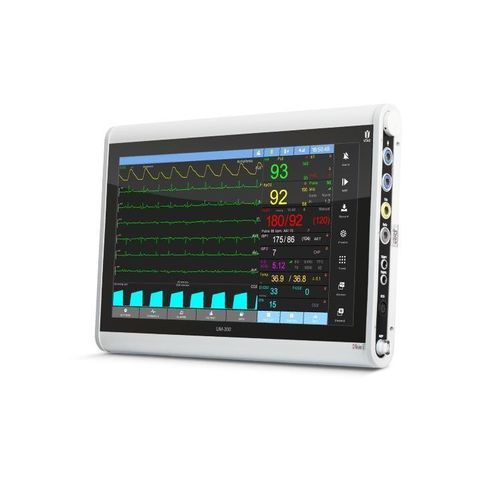

Compact multi-parameter monitor UM 300-20-S

ECGSpO2NIBP

Overview
UM 300-20-S patient monitor with a wide 20″ HD screen provides expanded space for waveforms, numeric data, vital parameters and configurable widgets, ideal for operating rooms and critical care where visibility and data density are essential.

Key benefits

• Large 20″ HD display designed for OR and ICU environments where smaller screens limit situational awareness.
• Extended layout area for simultaneous visualization of curves and numeric data.
• Allows placement at greater distance for clear viewing by clinical staff.

Mounting solutions
Multiple mounting options are available for UM 300-20-S. Supplied components vary with order specification.

• Mobile cart with basket
• Adjustable wall arm mount
• Wall arm mount with basket
• Mount for medical rail
• Mount for vertical rack

Basic configuration (examples of monitoring channels)

• ECG
• SpO2
• CO2 / EtCO2
• Multigas
• Heart rate
• Respiratory rate
• NIBP
• Temperature

Channels & UniPort™
Configure monitoring precisely for each clinical situation using Channels & UniPort™ modules. Add only required channels without bulky external consoles for a compact, modular solution.

UniScreen™ — visualization
Enhanced visualization options improve data readability and workflow. Group critical vitals and extend the display to an additional screen. The additional display expands visualization space rather than duplicating content, enabling customized layouts across both screens and quick setup of a 22″ HD UniScreen™.

Automated Anesthesia Record
The automated anesthesia record captures intraoperative events and patient reactions (bleeding, bronchospasm, desaturation, etc.).

• Analyze intraoperative performance
• Log drug administrations and doses
• Generate PDF reports from records
• Trend monitoring: NIBP, Temperature, HR, BIS™, NMT, EtCO2

Design and maintenance

• User-friendly interface adapted to clinical workflows
• Ultra-thin profile for compact installation
• Durable aluminum casing
• Fanless fully passive cooling for low noise and reliability
• Easy to clean and disinfect

Downloads (available resources)
Product brochures, booklet (PDF) and mounting documentation are available for detailed specifications and ordering information.

Specifications / Technical data

• Model: UM 300-20-S
• Display: Wide 20″ HD screen (main unit)
• Support for additional display: up to 22″ HD (UniScreen™)
• Basic monitoring channels: ECG, SpO2, EtCO2/CO2, Multigas, Heart rate, Respiratory rate, NIBP, Temperature
• Modularity: Channels & UniPort™ modules for extended configuration
• Mounting options: mobile cart with basket; adjustable wall arm; wall arm with basket; mount for medical rail; mount for vertical rack
• Cooling: fanless fully passive cooling
• Casing: durable aluminum
• Special features: Automated Anesthesia Record (event registration, drug administration logging, PDF reports, trends incl. BIS™ and NMT)
• Design: ultra-thin, user-friendly interface, easy to clean and disinfect
