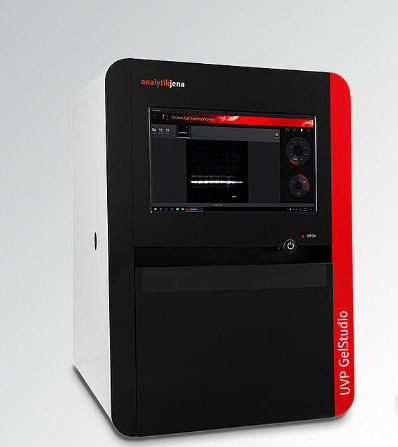

Automated molecular imaging system GelStudio

for gel documentationwith integrated camerawith touchscreen

Imager for gel documentation in two different sizes Available as a touch screen controlled or as an external computer operated system High sensitivity camera and optic Light sources - Overhead: white, red, green and blue LEDs included Base lighting: Thin-Line Transilluminator, (302 nm) with High/Low intensity control Illuminated area: 16.8 x 21 cm Filter wheel - Five-position automated filter wheel Darkroom features - 13.3” integrated, multi-touch computer (UVP GelStudio touch only) Fold-down door Thin-Line Transilluminator in a pull-out tray UV On indicator light USB port (right side of unit) 6 additional USB ports (back side of unit) Access port for optional UVP eLITE Light Source Accessories included - Ethidium bromide filter VisionWorks Software for image capture, enhancement and analysis (unlimited licenses) Flash drive with VisionWorks Software (license free) UVP Fluorescent Focus Target UV Gel Tray UV Protection Shield Empty flash drive for data and image storage Keyboard and mouse (touch screen systems only)
