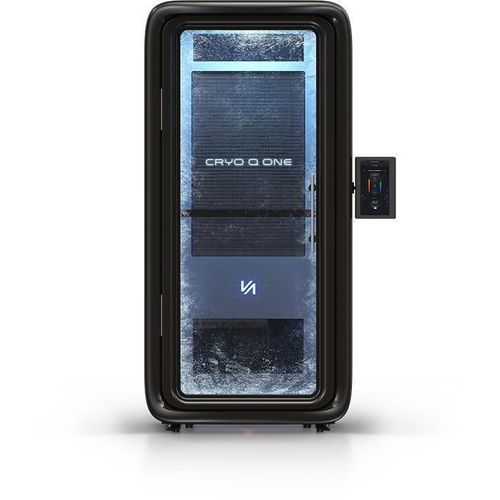

Thermoelectric cooling cryotherapy cabin Cryo Q One

whole body

Overview
Designed for integration into longevity clinics and biohacking suites, the Cryo Q One is a fully electric whole-body cryotherapy chamber that replicates a perceived thermal intensity of -110°C (-166°F) without the need for cryogenic gases. The unit uses a cascade refrigeration cycle and a water-cooled condenser to provide reliable, quiet full-body cold exposure with enhanced user comfort.

Key benefits & experience

• True -110°C perceived thermal intensity for systemic recovery and metabolic support.
• Nitrogen-free operation using a fully electric cascade refrigeration system.
• Panoramic CryoShield™ dual-pane glass for visibility and thermal isolation to reduce claustrophobic sensation.
• Water-cooled engineering for low noise and stable performance.
• Integrated HD audio and adjustable ambient lighting to tailor the client session.

Control & operation
The cabin is managed via a 15.6-inch touch screen with an intuitive interface for session setup and live monitoring. Airflow is adjustable from 1% to 100% via touchscreen or an internal dial, allowing fine client control. The system includes voice guidance (Vocal IQ™) and automated maintenance routines to maximize uptime.

Engineering & installation options
The core system employs a fully electric cascade refrigeration cycle with an internal water-cooled condenser (hydro-circuit). Two installation interfaces are available:

• Type A: Direct mains water connection (open loop) — connects to building mains and drains for optimized operation.
• Type B: External chiller integration (closed loop) — supports an external closed-loop chiller, avoiding floor drains and minimizing water use.

Operational features

• Cooling time: approximately 30 minutes to reach operational intensity.
• Automatic Intelligent-Dry™ 2-hour drying cycle after the last session to eliminate manual drying.
• Redundant industrial-grade sensors for continuous cabin monitoring.
• Continuous software updates for feature and safety improvements.

Additional highlights

• CryoShield™ dual-pane glass (floor-to-ceiling transparency with thermal barrier).
• Vocal IQ™: smart voice notifications and prompts for operator and client guidance.
• Adjustable interior ambient lighting to reduce anxiety and personalize sessions.
• High-definition integrated audio for music or guided programs.
• Future-proof software architecture with regular updates.

Technical specifications

• Height: 232 cm (91 in)
• Depth: 211 cm (83 in)
• Width: 112 cm (44 in)
• Technology: Fully electric cascade refrigeration cycle (nitrogen-free)
• Heat rejection: Water-cooled condenser system (internal hydro-circuit)
• Thermal intensity: Equivalent to -110°C (-166°F)
• Installation interface: Type A — Direct mains water connection (open loop); Type B — External chiller integration (closed loop)
• Cooling time: 30 min
• Drying time: 2 hours (automatic Intelligent-Dry™)
• Touch screen display: 15.6 inch
• Airflow control: Dual-interface (touchscreen + internal dial), adjustable 1%–100%
• Interior ambient light: Yes
• High-definition audio: Yes
• CryoShield™: Dual-pane glass
• Vocal IQ™: Voice notifications
• Software updates: Yes
