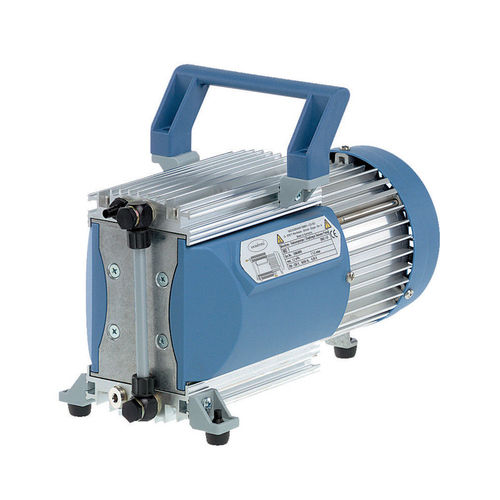

Laboratory vacuum pump MD 1

diaphragmmulti-stagedry

Overview

• Oil-free, contamination-free pumping and evacuation
• High pumping speed even close to ultimate vacuum
• Ultimate vacuum 1.5 mbar (≈1.1 torr)
• Very low noise and vibration
• Long diaphragm lifetime; maintenance-free drive

Product summary
The MD 1 diaphragm pump is a compact, oil-free pump for evacuation and pumping of non-corrosive gases. Its three-stage design with precisely guided flat diaphragms provides superior pumping speed close to the ultimate vacuum compared with two-stage designs. Flow-path materials (aluminum and selected plastics), PTFE/FKM diaphragms and FKM valves make the pump suitable for a wide range of non-aggressive gas applications. The MD 1 is ultra-low vibration, has a documented long diaphragm life and is delivered ready for immediate use.

Technical data (key values)

• Model: MD 1
• Max. pumping speed (50 Hz): 1.2 m3/h
• Max. pumping speed (60 Hz): 0.82 cfm
• Ultimate vacuum: 1.5 mbar / 1.1 torr
• Number of heads: 4
• Number of stages: 3
• Inlet connection: Hose nozzle DN 6 mm
• Outlet connection: Silencer / G1/8"
• Rated motor power: 0.08 kW
• Rated motor speed (50/60 Hz): 1500 / 1800 min-1
• Protection class (IEC 60529): IP 40
• Dimensions (L x B x H): 326 x 143 x 215 mm
• Weight: 7.3 kg
• Noise (sound pressure level) at 50 Hz: 40 dBA
• Max. back pressure (abs.): 1.1 bar
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature range: -10 °C to 60 °C
• ATEX conformity: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• NRTL certification: Yes
• Rated mains voltage ranges: 220-230 V; 100-115 V; 120 V
• Mains frequency: 50-60 Hz (various ranges supported)
• Flow path materials: Aluminum and selected plastics; diaphragms PTFE/FKM; valves FKM

Applications / Use examples

• Fore-vacuum for turbomolecular pumps
• Pumping and evacuation of non-corrosive gases in laboratories and industrial processes

Items supplied / Accessories
Pump delivered completely mounted and ready for use, including manual. Spare parts and consumables (diaphragm and valve kits) are available separately.

Characteristics / technical specifications

• Type: Oil-free, dry-running diaphragm pump, 3-stage
• Typical fields: laboratory, analytical instruments, pre-vacuum for high vacuum pumps
• Certifications: ATEX (internal atmosphere), NRTL
