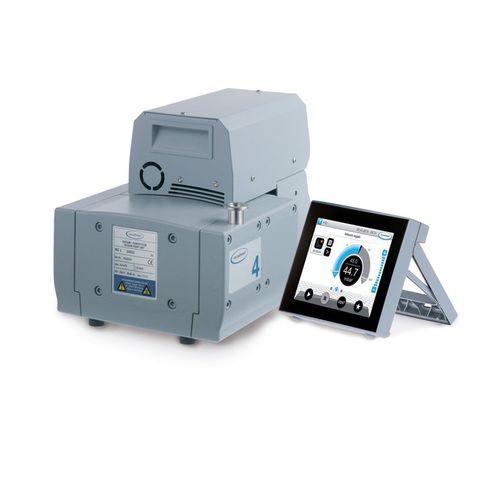

Laboratory vacuum pump MD 4 VARIO® select

double-diaphragmdiaphragmmulti-stage

Overview

• VACUU·SELECT vacuum controller with graphical user interface and predefined applications simplifies laboratory procedures
• Extended diaphragm lifetime reduces operating and maintenance costs
• Oil-free, contamination-free pumping and evacuation
• Excellent ultimate vacuum and TURBO·MODE for use as a backing pump for turbo molecular pumps

Description
This three-stage, oil-free diaphragm pump is designed for continuous pumping of non-corrosive gases down to 1 mbar. Wetted parts are aluminium, stainless steel and selected engineering plastics suitable for a wide range of laboratory and industrial applications. The MD 4 VARIO select continuously adapts motor speed to maintain the set vacuum level, providing low noise, minimal vibration and high leak tightness. The fabric-reinforced double FKM diaphragms are engineered for long service life. The VARIO design combines the variable-speed pump with the VACUU·SELECT controller and an external gauge head; demand-responsive speed control further extends diaphragm and valve life.

Key product details

• Ultimate vacuum: 1 mbar (0.75 torr)
• Max. pumping speed (50 Hz): 5.7 m³/h
• Max. pumping speed (60 Hz): 3.4 cfm
• Number of heads: 4
• Number of stages: 3
• VACUU·SELECT vacuum controller included

Technical specifications

• Rated motor power: 0.53 kW
• Rated voltage range: 200–230 V, 50–60 Hz
• Protection class: IP 20 (IEC 60529)
• Inlet connection: small flange KF DN 16
• Outlet connection: Silencer / G1/4"
• Max. back pressure (abs.): 1.1 bar
• Operating temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Dimensions (L×W×H): 325 × 235 × 245 mm
• Weight: 19.1 kg
• Noise (sound pressure) at 50 Hz: 45 dBA
• Interfaces: Ethernet (RJ45) Modbus TCP, USB Type A, RS-232 (adapter required)
• ATEX: II 3/- G Ex h IIC T3 Gc X (internal atmosphere only)
• Items supplied: Pump mounted and ready for use with manual
