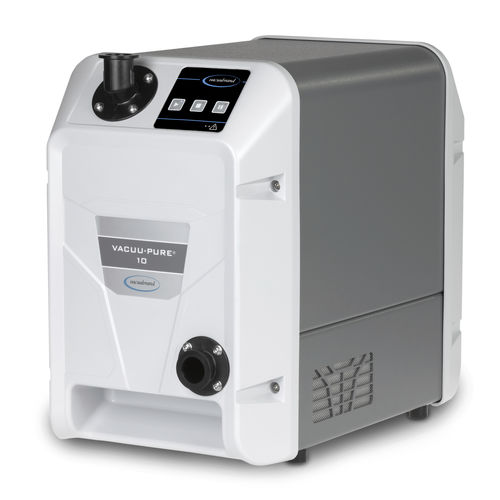

Laboratory vacuum pump VACUU·PURE® 10

screwoil-freedry

Overview

• Vacuum range down to 10⁻3 mbar
• 100% oil-free, contact-free screw spindles
• No abrasion and no wear parts
• High condensate compatibility — no gas ballast required

Product description
The dry screw pump VACUU·PURE 10 delivers oil-free vacuum performance into the 10⁻3 mbar range. The contact-free screw spindles eliminate abrasion and wear parts, enabling clean, hydrocarbon-free processes. The pump is suitable for continuous operation from atmospheric pressure down to its ultimate vacuum without changing the pump. Exceptional condensate tolerance allows operation under high vapor loads without a gas ballast, and the integrated regeneration mode accelerates pump drying after process cycles to increase sample throughput compared with other pump technologies.

Key product details

• Ultimate vacuum: 5 x 10⁻3 mbar (≈ 3.8 x 10⁻3 torr at 1013 mbar)
• Max. pumping speed (50 Hz): 10 m³/h
• 100% oil-free, contact-free screw spindles, no wear parts
• High condensate compatibility; no gas ballast required
• Integrated regeneration mode for rapid drying
• Interface: VACUU·BUS (Modbus RTU)
• Rated motor power: 0.7 kW — Rated mains voltage range: 100–230 V, 50–60 Hz
• Noise (50 Hz): 52 dBA — Protection class: IP20

Technical specifications

• Max. pumping speed 50 Hz: 10 m³/h
• Ultimate vacuum: 5 x 10⁻3 mbar / 3.8 x 10⁻3 torr (at 1013 mbar)
• Vacuum controller: without controller
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Max. back pressure (abs.): 15 mbar above atmospheric pressure
• Inlet / outlet connection: small flange KF DN 25
• Rated motor power: 0.7 kW
• Protection class IEC 60529: IP20
• Dimensions (L x W x H): 507 x 269 x 413 mm
• Weight: 21.1 kg
• Noise (sound pressure) at 50 Hz: 52 dBA
• NRTL certification: Yes

Applications

• Pre-vacuum for turbomolecular pumps
• Freeze-drying / lyophilization
• Drying ovens and drying processes
• Reactors, synthesis and clean process environments
• Laboratory and pilot-scale production

Scope of supply

• Pump completely mounted, ready for use; connections with small flange KF DN 25; manual included
• Chemically resistant variant VACUU·PURE 10C available as option
