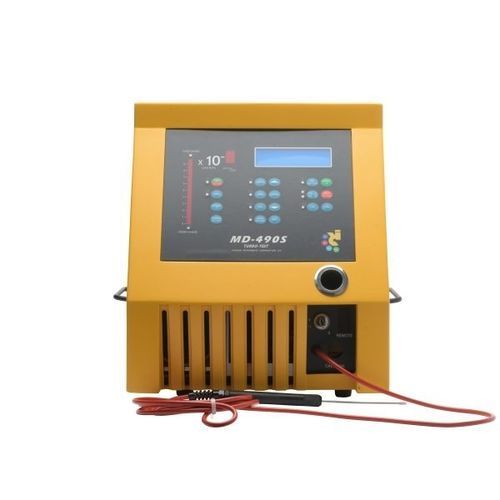

Helium leak detector MD-490S

for medical devicesfor bagsfor packaging

The MD-490S is a leader among portable tracer gas leak detectors. With a response time of less than 0.5 seconds, sensitivity to 10-8 direct reading atm-cc/sec, and the ability to zero out the background, this is the industry’s most aggressive portable leak detector. The MD-490S is fully integratable with our SmartCharge 5. It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment.. Main Features Fastest response time in the industry (less than 0.5 seconds) Helium background suppression Maintenance free, dry pump Sensitivity to 5 x 10-8 atm cc/sec Less than 3 minutes total start-up time Fully automatic calibration sequence with built-in 10-5 atm cc/sec gas leak Front panel key lock-out Sealed membrane keypad Fully interactive system diagnostics with multilingual displays High output (110dB) adjustable audio alarm Flexible Communication Format Option Full Duplex RS232 communication Option AC & DC PLC Interfacing Option Analog Outputs Option Data Link Software Options VIC exclusive Vibrated-Probe w/built-in Auto Zero switch Carrying Case Portable Cart Accessories Smart Charge 5, Gas Handling Unit Test Booths and Fixturing Multi-point probes Robotic Sniffing Leak calibrator Master leak Connectors…
