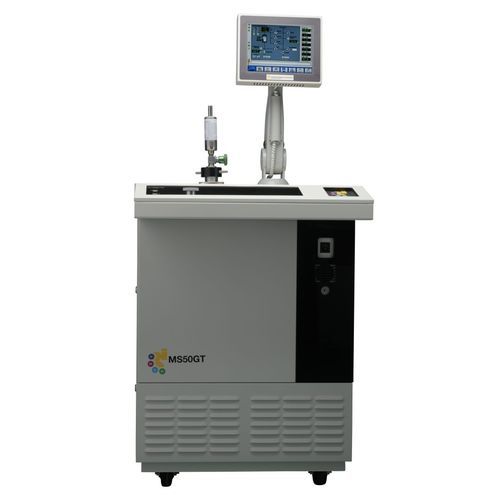

Helium leak detector MS-50GT

for medical devicesfloor-standingcontinuous

The MS-50GT is a highly technical system that incorporates many sophisticated technologies. In view of this, every effort has been made to automate the unit’s operation and maintenance procedures. The MS-50GT is an automated high-speed production console leak detector featuring three flow modes which provide flexibility and maximum productivity for application-specific leak testing. It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment.. Characteristics Sensitivity, vacuum*: 3.0 x 10-11 (atm-cc/sec) Sensitivity, sniffing: 1.0 x 10-8 (atm-cc/sec) Leak Measurement Range: 3.0 x 10-11 Leak Ranging: Auto/Manual Startup Time: Less than 3 minutes Response Time *: <2 direct <2.5 reverse Resolution for 4He*: 14 at mass 4 Gross Test Time (with UFT Option): – 3 (100 Torr)(seconds) Fine Test Time (with UFT Option): – 10 (25 mTorr, 10^-10 atm-cc/sec) Mass Spectrometer Tube: 180° deflection; dual-magnetic sector Auto-tuning Auto-calibration: Internal; External – auto Auto-zeroing: Several zeroing functions modes for background suppression Reject set-point Built-in calibrated leak: 10-08 range NIST traceable: Yes Temperature compensated Scan/Descan Filaments: 2 Thoria Coated Irridum Testable Masses: 3+4 Background Compensation: Automatic Maximum Operating Pressure: 100 mTorr, 10 Torr reverse Display/Interface: 10 (25.4) LCD flat panel display, capacitive touch-screen / Graphical User Interface (GUI Units: cc/second, mbar*l/second, Pa*M3/second RS-232C Software: 50 programmable test recipes; Data Link optional Available Models Dual Port Ultrafast (UFT) Oil-based Dry Pump
