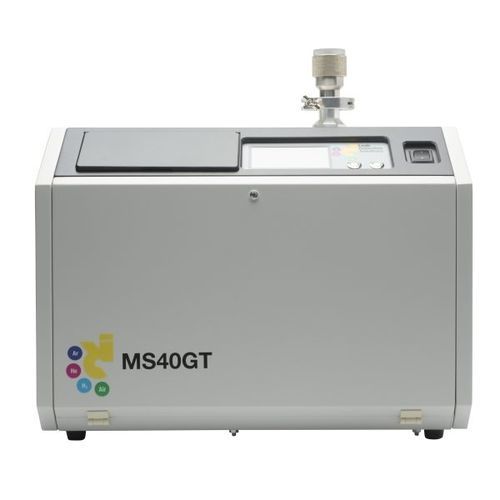

Helium leak detector MS-40GT

for medical devicesfor bagsfor packaging

The MS-40GT available either wet or dry pumping package is fully automatic, easy to use, and highly accurate. These advanced leak detectors are ideal for a broad range of applications including clean, oil-free testing. Helium that is present in a test object is drawn into the unit (either through the test port or through the sniffer valve), isolated and detected by a mass spectrometer, and converted into an electric signal. The electric signal generated is proportional to the leak rate of the helium drawn through the leak found in the test object. Once this signal is amplified, the signal is displayed as a leak rate on the User Panel of the MS-40GT. It also meets the stringent requirements for robustness, reliability and ease of maintenance that are essential in any industrial environment.. Characteristics Sensitivity, vacuum: 4.0×10-11 (atm-cc/sec) Sensitivity, sniffing: 5.0×10-7 (atm-cc/sec) Leak Measurement Range: 1.0 x 10-3 to 4.0 x 10-11 (10 atm cc/sec to 4.0 x 10-11 w/ext pump) atm-cc/sec Leak Ranging: Auto/Manual Startup Time: Less than 3 minutes Response Time: <2 direct <3 reverse Resolution for 4He *: 14 Mass Spectrometer Tube: 180° deflection; dual-magnetic sector/stainless steel construction Auto-tuning Auto-calibration: Internal; External – auto Auto-zeroing Reject set-point Built-in calibrated leak NIST traceable: Temperature compensated He Scan Filaments: 2 Thoria Coated Irridum Maximum Operating Pressure: 7.5, 760 w/ext roughing option (Torr) Display: Touch screen GUI user interface Units: atm cc/s, mbar*l/s, Pa*M3/sec Background Compensation: Continuous automatic compensation for system background Testable Masses: 3 and 4 Printer Port: RS-232C
