Rotating anode X-ray tube MCS-71715computed tomography
Add to favorites
Compare this product
Characteristics
- Tube type
- rotating anode
- Applications
- computed tomography
- Nominal anode input voltage
Max.: 80,000 W
Min.: 37,000 W
- Nominal tube voltage
140 kV
Description

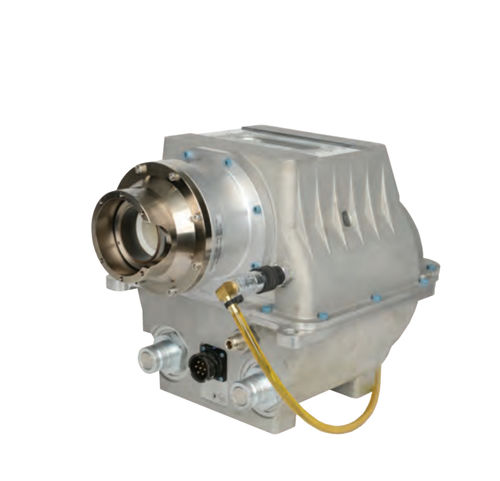

The MCS-71715 is a 7.8” (200 mm), 5.4 MJ (7.5 MHU) maximum anode heat content, rotating anode insert. This insert is specifically designed for CT Scanners. The insert features a 7° tungsten-rhenium facing on molybdenum with a graphite backed target and is available with the following nominal focal spots:
0.7 x 0.8
1.2 x 1.4
IEC 60336
Loading Factor for Slit Focal:
Small - 120 kV, 200 mA
Large - 120 kV, 200 mA
Maximum Anode Cooling Rate:
16,500 W (23,100 HU/sec)
Maximum continuous anode heat dissipation:
12,000 W (16,800 HU/sec)
Reference Axis:
Perpendicular to port face.
This insert is intended for use in Varex Imaging B-807H housing.
The MCS-71715 utilizes one fluid:
a) Dielectric oil in the housing and heat exchanger.
