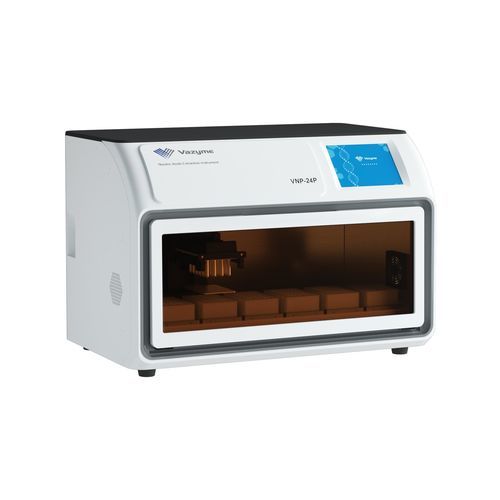

Animal research nucleic acid extractor VaPura 24

for researchwith touchscreenfully automated

Product Description
VaPura is a high-throughput, high-precision nucleic acid extractor using prepackaged reagents based on silica-coated superparamagnetic beads to isolate nucleic acids from blood, tissues, cells, body fluids, bacteria, viruses and other biological samples. Magnetic rods capture, transfer and release beads to purify and concentrate nucleic acids. The fully automated workflow and fast processing make it suitable for molecular research and animal disease testing.

Features

• Simple and efficient: Load samples and start automatic extraction with a one-button preset program.
• High extraction efficiency: Recovery rate >95% using strong magnetic adsorption and permanent magnet materials.
• Effective contamination control: Built-in UV module and drying fan reduce contamination risk.
• Power-failure protection: Automatic resume after power restoration to prevent sample loss.

Parameters
Model: VaPura 24
Principle: Magnetic beads-based method
Sample throughput: 1–24
Compatible consumables: 24 deep-well plate
Processing volume: 200 μL–5 mL
Repeatability (CV): ≤ 5%
Heating temperature: Room temperature–120°C
Temperature accuracy: ±1°C
Operation interface: 8-inch color touch screen (external mouse supported)
Stored programs: up to 1000
Program management: New, edit, save as, delete, mode program
Interfaces: 3 × USB Type A, 1 × Ethernet, 1 × DB9 (debug)
Network: Wi‑Fi function
Disinfection: UV disinfection
Max input power: AC 100–240 V, 50Hz/60Hz, 500 W
Dimensions (W×D×H): 750 × 495 × 525 mm
Weight: 70 kg
Location: Indoor use
Altitude: ≤ 2000 m
Mains fluctuation tolerance: ≤ ±10%
Overvoltage category: II
Pollution degree: 2
Ingress protection: IPX0

Storage
Store at 15–25°C; transport at room temperature.

Use
For Research Use Only. Not for use in diagnostic procedures.

Technical specifications

• Model: VaPura 24
• Cat. No.: VNP-24P
• Size option shown: 1
• Principle: Magnetic beads-based method
• Sample throughput: 1–24
• Compatible consumables: 24 deep-well plate
• Processing volume: 200 μL–5 mL
• Repeatability (CV): ≤ 5%
• Heating range: Room temperature–120°C
• Temperature accuracy: ±1°C
• Interface: 8-inch color touch screen (external mouse supported)
• Stored programs: up to 1000
• Program management: New, edit, save as, delete, mode program
• Connectivity: 3 × USB Type A, 1 × Ethernet, 1 × DB9 (debug)
• Network: Wi‑Fi
• Disinfection: UV
• Power: AC 100–240 V, 50Hz/60Hz, 500 W
• Dimensions: 750 × 495 × 525 mm (W×D×H)
• Weight: 70 kg
• Intended location: Indoor use
• Altitude: ≤ 2000 m
• Mains fluctuation tolerance: ≤ ±10%
• Overvoltage category: II
• Pollution degree: 2
• Ingress protection: IPX0
