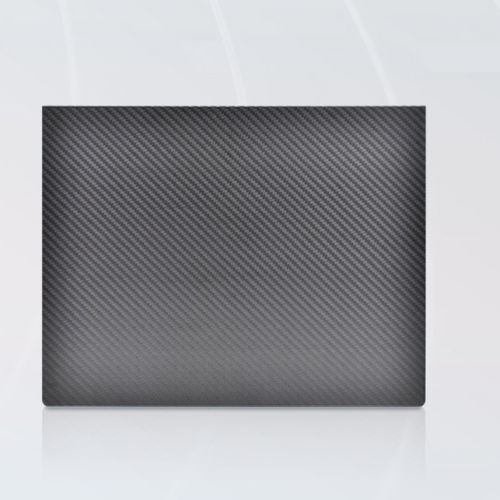

Mammography flat panel detector VIVIX-M 2430D

portable

Superior Image Quality IGZO TFT Panel High MTF & DQE Two Different Models: 2.2 fps / 4 fps DBT (Digital Breast Tomosynthesis) System Control AEC (Automatic Exposure Control) Thin Chest Wall Distance Bezel Size : 1.8 mm Convenient Patient Positioning Securing Active Area Easily Specifications Technology IGZO TFT Scintillator CsI Pixel Pitch 75 ㎛ Spatial Resolution 6.7 lp/㎜ Pixel Matrix 3840 x 3072 pixels Grayscale 16 bits X-ray Voltage Range 20 - 45 kVp Image Acquisition Time 3 s Recommended Cycle Time 15 s Data Interface - Gigabit Ethernet X-ray Generator Interface - External trigger Dimensions 32.8 ㎝ x 25.5 ㎝ x 3.5 ㎝ Weight 2.5 kg Chest Wall Distance 1.8 ㎜ Operating Environment 5℃ to 45℃ 30 % to 85 % RH (non-condensing) Power Consumption DC 24 V, 1 A
