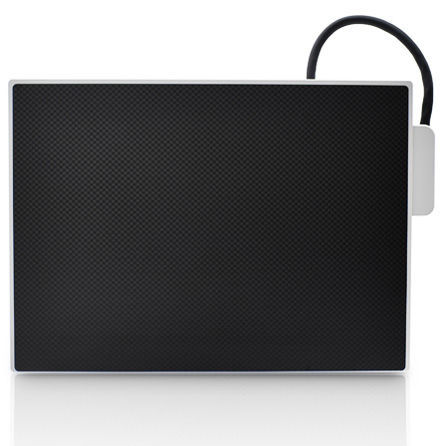

Mammography flat panel detector VIVIX-M 1824S

portable

Superior Image Quality IGZO TFT Panel High MTF & DQE Easy Upgrade Anytime™ : Vieworks' proprietary AED (Automatic Exposure Detection) technology with reliable performance ISO 4090 : same size as a film/CR cassette Special Design for Conventional AEC Systems : the mechanical part is designed to use the existing system as is Thin Chest Wall Distance Bezel Size : 2 mm Convenient Patient Positioning Securing Active Area Easily Enhanced Workflow - Smart-W™ Optimization X-ray Window Technology : detector senses X-ray immediately and processes an image right away once x-ray exposure is finished Specifications Technology IGZO TFT Scintillator CsI Spatial Resolution 6.7 lp/㎜ Pixel Matrix 3072 x 2304 pixels Grayscale 16 bits Image Acquisition Time 3 s Recommended Cycle Time 15 s Data Interface Gigabit Ethernet X-ray Generator Interface - AED Mode Dimensions 26.8 ㎝ x 19.5 ㎝ x 1.5 ㎝ Weight 1 kg Chest Wall Distance 2 ㎜ Operating Environment 10℃ to 35℃ 30 % to 85 % RH (non-condensing) Power Consumption DC 24 V, 0.75 A
