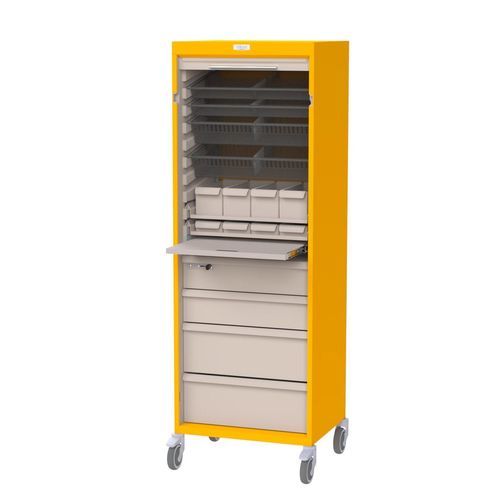

Consumable cabinet Eolis®

modularon casterswith tambour door

Modular cabinet from the Eolis® range designed to store ISO 600×400 accessories. Depth 400 mm model available with a single roller shutter, intended for professional medical use.

Standard equipment:

• 1 maneuver handle (left side)

Capacity options:

• 20 modules (including 7 inclined at the top)
• 21 modules
• 17 modules
• 13 modules
• 30 modules (narrowed uprights)
• 24 modules (narrowed uprights)
• 18 modules (narrowed uprights)

Functional description:

• Modular design with internal uprights (slides) in ABS, to be fitted with accessories (bins, trays, ...) in ISO 600×400 format.
• Open-front cabinet, closed on 5 sides.
• Removable ABS roller shutter (opening top → bottom).
• Optional centralized locking.
• Monobloc mechanically-welded epoxy steel body; 8 finishes available.
• Swivel castors Ø125 mm, 2 braked; polyamide bracket; grey non-marking rubber tread; stainless-steel ball bearings; fitted with cable guards.

Technical specifications:

• Accessory format compatible: ISO 600×400
• Construction: monobloc mechanically-welded epoxy steel body
• Internal elements: uprights/slides in ABS
• Roller shutter: removable ABS, opening top → bottom
• Mobility and braking: 4 swivel castors Ø125 mm (2 braked), polyamide bracket, grey non-marking rubber tread, stainless-steel bearings
• Product reference shown on page: 1007.50
• Finishes: 8 colours available
