General purpose cabinet unit Eolis®

modularon casterswith tambour door

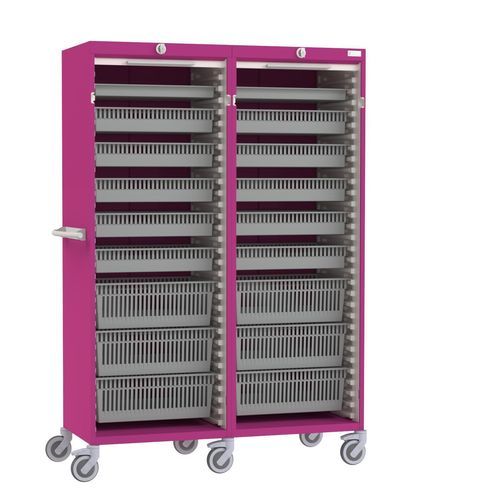

Modular medical cabinet Eolis® in 400 mm depth version with double roller shutter, designed for storage and organization of ISO 600 x 400 accessories. The unit has an open front (closed on 5 sides) with removable ABS roller shutter and a monobloc mechano-welded epoxy-painted steel body.

Equipped as standard with :

• 1 manoeuvre handle (left side).

Technical description :

• Modular design with internal ABS ladder rails (guides) to be fitted with ISO 600 x 400 accessories (bins, trays, ...).
• Open-front cabinet, closed on 5 sides for access from the front.
• Removable ABS roller shutter (top→bottom opening); central locking optional.
• Monobloc mechano-welded steel body with epoxy paint finish (available in 8 colours).
• Swivel castors Ø 125 mm, 2 with brake; polyamide yoke; non-marking grey rubber tread; stainless steel ball bearings; equipped with cable guards.

Characteristics / technical specifications :

• Product reference: 1007.56
• Compatible accessory format: ISO 600 x 400
• Materials: mechano-welded painted epoxy steel body; roller shutters and guides in ABS.
• Wheels: Ø 125 mm, 2 braked wheels, polyamide yoke, non-marking grey rubber tread, stainless steel bearings.
• Available capacity options (selectable on the product page): 2 x 21 modules, 2 x 17 modules, 2 x 13 modules, 2 x 30 modules, 2 x 24 modules, 2 x 18 modules.
• Central locking: optional.
