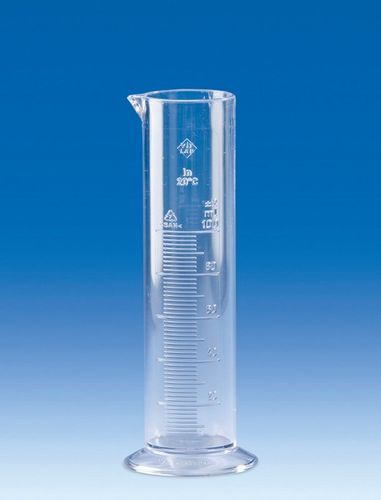

Plastic measuring cylinder 64091

graduated

Overview

• Crystal clear.
• With molded graduations and ring marks at the primary scale points, calibrated "In".
• Thermal stress up to 60 °C does not cause tolerance limits to be permanently exceeded.
• Suitable for contact with foodstuffs according to Regulation (EU) No. 10/2011.

Types / Sizes
Volume ml | Tolerance ± ml | Graduation ml | Ø mm | Height mm | PU | Cat. No.
25 | 0,50 | 0,5 | 25 | 120 | 12 | 64091
50 | 1,00 | 1,00 | 29 | 140 | 12 | 64191
100 | 2,00 | 2,00 | 37 | 163 | 12 | 64291
250 | 5,00 | 5,00 | 51 | 192 | 6 | 64391
500 | 10,00 | 10,00 | 67 | 218 | 6 | 64491
1000 | 20,00 | 20,00 | 78 | 285 | 6 | 64591

Characteristics / Technical specifications

• Material: SAN (styrene-acrylonitrile).
• Accuracy class: Class B.
• Form: short form.
• Graduations: molded graduations with ring marks at the primary scale points; calibrated "In".
• Thermal performance: thermal stress up to 60 °C does not permanently exceed tolerance limits.
• Compliance: suitable for contact with foodstuffs according to Regulation (EU) No. 10/2011.
• Packaging: products individually packaged in PE bags, labelled with the article number, description and EAN code.
