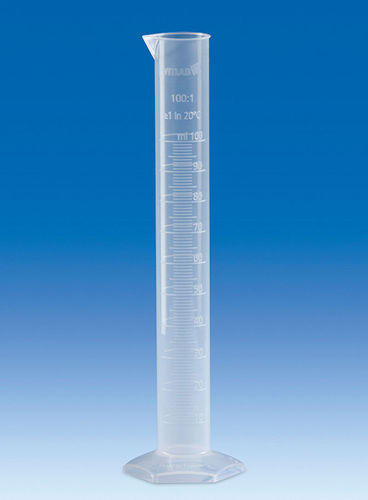

Polypropylene measuring cylinder 646941

plasticgraduated

Product description

• Highly transparent.
• With molded scale and ring marks at the primary scale points; calibrated 'In'.
• Class B tolerances according to DIN 12681 / ISO 6706.
• Hexagonal base with bottom studs provides high stability.
• Thermal stress up to 80 °C does not cause tolerance limits to be permanently exceeded.
• Suitable for contact with foodstuffs according to regulation (EU) No. 10/2011.

Types / Sizes (table)
Volume ml | Tolerance ± ml | Graduation ml | Ø mm | Height mm | PU | Cat. No.
10 | 0,20 | 0,20 | 15 | 145 | 12 | 646941
25 | 0,50 | 0,50 | 22 | 170 | 12 | 647941
50 | 1,00 | 1,00 | 27 | 200 | 12 | 648941
100 | 1,00 | 1,00 | 33 | 250 | 12 | 649941
250 | 2,00 | 2,00 | 44 | 315 | 6 | 650941
500 | 5,00 | 5,00 | 58 | 360 | 6 | 651941
1000 | 10,00 | 10,00 | 69 | 440 | 6 | 652941
2000 | 20,00 | 20,00 | 97 | 482 | 3 | 653941

Characteristics / technical specifications

• Material: Polypropylene (PP).
• Form: Tall form graduated cylinder.
• Scale: Molded graduations; ring marks at primary scale points; calibrated 'In'.
• Accuracy class: Class B (DIN 12681 / ISO 6706).
• Thermal stability: Thermal stress up to 80 °C without permanent exceeding of tolerance limits.
• Base: Hexagonal base with bottom studs for high stability.
• Food contact: Suitable for contact with foodstuffs according to Regulation (EU) No. 10/2011.
• Available volumes and catalog numbers: see Types / Sizes table above.
• Packaging: Individually packaged in PE bags, labelled with article number, description and EAN code.
• Product SKU (page): 90040200004.
