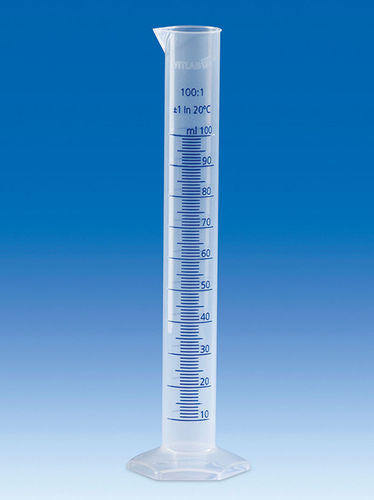

Polypropylene measuring cylinder 646081

graduated

Overview

• Highly transparent graduated cylinders made of polypropylene (PP), suitable for routine laboratory volume measurements and process control.
• Easily readable molded, embossed blue graduations with ring marks at primary scale points; calibrated 'In' with Class B tolerances (DIN 12681 / ISO 6706).
• Hexagonal base with bottom studs provides enhanced stability on benches and trays.
• Thermal stress up to 80 °C does not cause permanent deviation from tolerances; cleaning below 60 °C is recommended to preserve markings.
• Suitable for contact with foodstuffs according to Regulation (EU) No. 10/2011.

Types / Sizes (table)
Volume ml | Tolerance ± ml | Graduation ml | Ø mm | Height mm | PU | Cat. No.
10 | 0.20 | 0.20 | 15 | 145 | 12 | 646081
25 | 0.50 | 0.50 | 22 | 170 | 12 | 647081
50 | 1.00 | 1.00 | 27 | 200 | 12 | 648081
100 | 1.00 | 1.00 | 33 | 250 | 12 | 649081
250 | 2.00 | 2.00 | 44 | 315 | 6 | 650081
500 | 5.00 | 5.00 | 58 | 360 | 6 | 651081
1000 | 10.00 | 10.00 | 69 | 440 | 6 | 652081
2000 | 20.00 | 20.00 | 97 | 482 | 3 | 653081

Downloads available (titles)

• Volume Measurement (brochure)
• Declaration of conformity (food)
• SoBSE_TSE Graduated Cylinders Tall Form With Molded Blue Graduations PP (Product Statement)

Characteristics / technical specifications

• Material: Polypropylene (PP)
• Calibration: Calibrated 'In'
• Accuracy class: Class B tolerances (DIN 12681 / ISO 6706)
• Graduation: Molded, embossed blue graduations with ring marks at primary scale points
• Base: Hexagonal base with bottom studs for high stability
• Thermal resistance: Thermal stress up to 80 °C without permanent tolerance deviations; cleaning recommended below 60 °C to preserve markings
• Food compliance: Suitable for contact with foodstuffs according to Regulation (EU) No. 10/2011
• Packaging: Individually packed in PE bags, labelled with article number, description and EAN code
• Available sizes & tolerances: See Types / Sizes table above
• Internal product SKU (page): 90040200003
