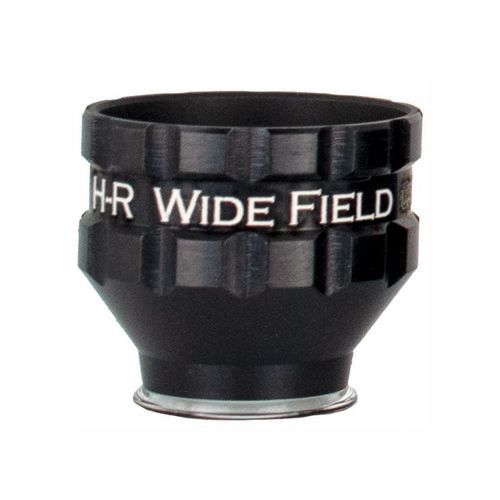

Diagnostic ophthalmic lens HR Wide Field

laserfor retinal laserwith wide field-of-view

Product overview
The HR Wide Field PRP Laser Lens VHRWF is part of the HR series designed for pan-retinal examination and laser treatment. It provides a wide field of view from the posterior pole to the ora serrata, enabling diagnosis and laser therapy of peripheral and far-peripheral retinal defects. The compact body (lens ring 24.8 mm; lens height 21.7 mm) increases working space between the laser and the patient’s eye for precise focusing and manipulation while offering stable corneal contact and patient comfort. HR optical design delivers bright, distortion-free, high-resolution imaging across the periphery.

Features

• Wide field of view: 160° / 165°
• Image magnification: 0.50x
• Laser spot magnification: 2.0x
• Higher-grade optics to minimize chromatic aberration for bright, high-resolution peripheral imaging
• Compact PRP lens body for easier handling and manipulation
• Suitable for diagnosis and treatment of mid- to far-peripheral retinal defects

Part Number
VHRWF

Technical specifications

• Field of view: 160° / 165°
• Image magnification: 0.50x
• Laser spot magnification: 2.0x
• Optical quality: higher-grade optics reducing chromatic aberrations for bright, distortion-free, high-resolution peripheral imaging
• Physical design: compact PRP lens body for easier manipulation (lens ring 24.8 mm; lens height 21.7 mm)
• Intended use: pan-retinal examination and laser treatments, suitable for mid- to far-peripheral retinal defects
