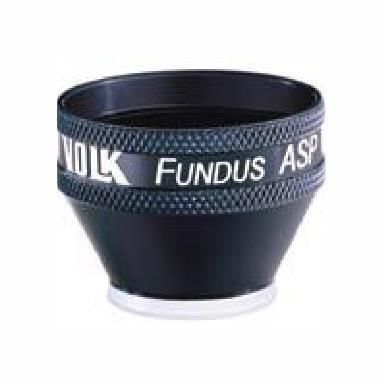

Laser ophthalmic lens VFUNDUS

for retinal laserwith wide field-of-viewhigh-resolution

Product Description
The Fundus Laser contact lens is designed for direct image viewing and laser treatment of the posterior pole. It incorporates patented double-aspheric glass optics to provide a clear, detailed view of the optic nerve head and macula. The lens delivers high image magnification for precise examination and enables accurate laser treatment. Integrated Laser Window technology ensures effective laser beam transmission while protecting the imaging element to support precise laser spot placement.

Key features

• Patented double-aspheric glass optics to improve retinal image detail
• Laser Window technology for optimal laser transmission and protection of the imaging element
• High magnification suitable for precise posterior pole examination and laser procedures
• Large 20 mm contact element option designed to sit under the patient’s eyelid for increased stability during laser treatment (VFUNDUS20)

Resources

• Cleaning and Care Guide (document available)

Technical specifications

• Field of view: 35° / 40° (Fundus Laser), and 25° / 30° (Fundus Laser 20 mm)
• Image magnification: 1.25× (Fundus Laser), and 1.44× (Fundus Laser 20 mm)
• Laser spot magnification: 0.80× (Fundus Laser), and 0.70× (Fundus Laser 20 mm)
• Large 20 mm contact element designed to sit under the patient’s eyelid for increased stability during laser treatment
• Part number: VFUNDUS (Standard) and VFUNDUS20 (20 mm Contact)
