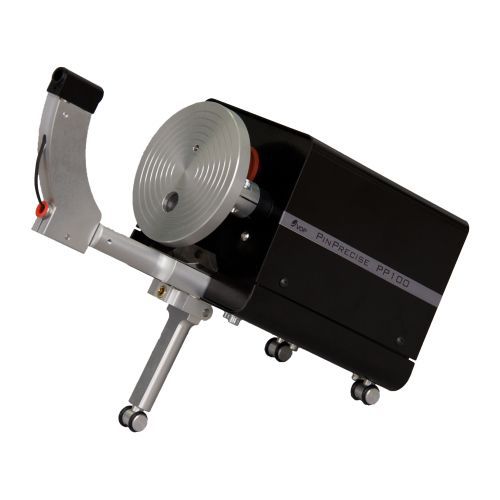

laser pin drilling machine
PINPRECISE PP100

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
laser pin drilling machine laser pin drilling machine - PINPRECISE PP100
{{requestButtons}}

Characteristics

  • Other characteristics:

    laser

Description

PINPRECISE PP100
Pin drilling unit

drill revolution regulation
automatic switch on system
compact and ergonomic
dust reduction system
Accessories:

Pin system Ref. № 100000032
Drill Ref. № 100000033
TECHNICAL DATA
POWER SUPPLY110/230V ±10%,50/60HZ
POWER CONSUMPTION100 W
MAXIMUM DRILL REVOLUTIONS4000 RPM
COLLET DIAMETERФ 3 MM
DRILLING DEPTH12 MM
LASERCLASS 3

MAX 5 MW
DIMENSIONS
W/D/H157X410X160 MM
WEIGHT5КG
Thank you for having purchased the drilling machine
PINPRECISE PP 100 which, we are sure will all meet all
your needs and will satisfy your high demands.
This device has been designed according to the
requirements of latest industrial standards and we
guarantee that you will use it many years as your closest
assistant.
However, inappropriate use may damage the
equipment and be harmful to personnel. Please observe
the relevant safety instructions and read the Operating
Instructions carefully.
We wish you pleasant and fruitful work with this
machine.
SAFETY INSTRUCTIONS
The following instructions must be observed in order
to avoid personnel injury or equipment failure.
the device must not be run by an operator who
is not acquainted with these instructions;
before turning on the plug in the net contact
check if the voltage in the electrical network
correspond to the working tension. In case of
discrepancy, consult a specialist
on no account do not alter the device;
 the notices and stickers must be kept in good
condition so that they are easily readable; they
should not be removed!
the machine must not function in case of being
damaged and in position to injure the staff or a
third person
