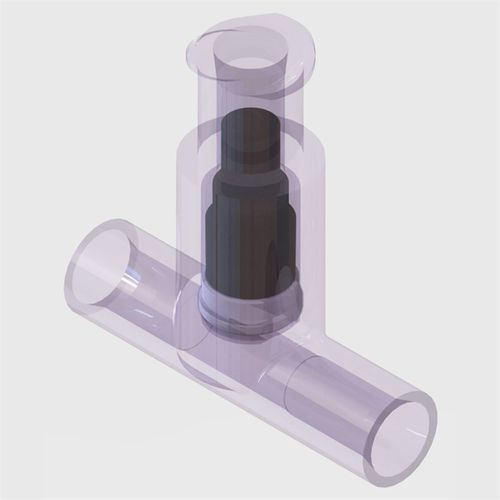

Medical valve E-N-190054

siliconepolycarbonate

Luer Lock Access Needle Free T-Port Check Valve, Female Luer Lock, Bondable Tube Ports, Clear PC Extended Description A Clear Polycarbonate bodied luer lock access needle free T-ported check valve with female luer lock and bondable tube ports for 4mm OD tubing designed as a replacement for needle ports, they can be used for drug delivery/IV administration applications. These are used on a variety of balloon catheters such as endotracheal tubes, tracheostomy tubes, gastric feeding tubes and urethral catheters. Ambient Temperature 0°C – 60°C (32°F – 140°F) Mounting Style In-line Connection 1 Female Luer Lock Connection 2 Bondable Tube Port for 4mm (0.156") OD Tube (x2) Recommended Filtration Not Applicable Media Temperature 0°C – 60°C (32°F – 140°F) Non-Wetted Materials Not Applicable Wetted Materials Polycarbonate, Silicone, Polypropylene Cleanroom Manufactured No Max. Inlet Pressure 2.07 bar (30 psi)
