Medical valve E-N-190063

medical valve
medical valve
medical valve
Add to favorites
Compare this product

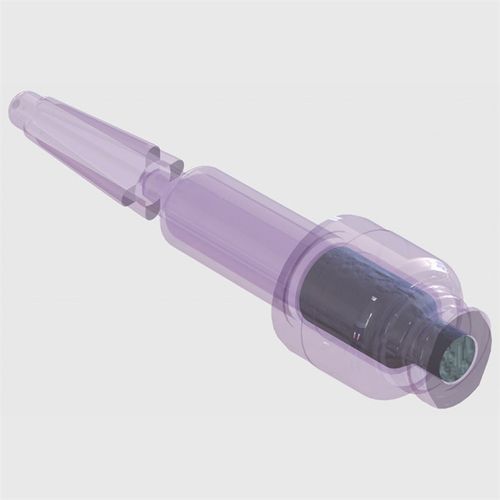

Break-Off Swabable Needle Free Luer Activated Valve, 6.0 mm, Clear Polycarbonate Extended Description A Clear Polycarbonate bodied break-off swabable valve designed to be used as a needle free injection site or to access the bag with a mating luer connector, eliminating the need for spike ports and needles. The break-off valve is designed for easy bonding. Ambient Temperature 0°C – 121°C (32°F – 250°F) Mounting Style In-line Connection 1 6.5mm OD (0.256") Bondable Tube Port for 6.0 mm ID Tube Connection 2 Female Luer Lock Recommended Filtration Not Applicable Media Temperature 0°C – 121°C (32°F – 250°F) Non-Wetted Materials Not Applicable Wetted Materials Clear Polycarbonate, Blue Silicone Cleanroom Manufactured No Max. Inlet Pressure 22.4 Bar* (325 psi*) Max. Back Pressure 2.75 Bar▲ (40 psi▲) Cracking Pressure Valve Opened by Luer Connection
