Medical valve E-N-190059

medical valve
medical valve
medical valve
medical valve
medical valve
medical valve
Add to favorites
Compare this product

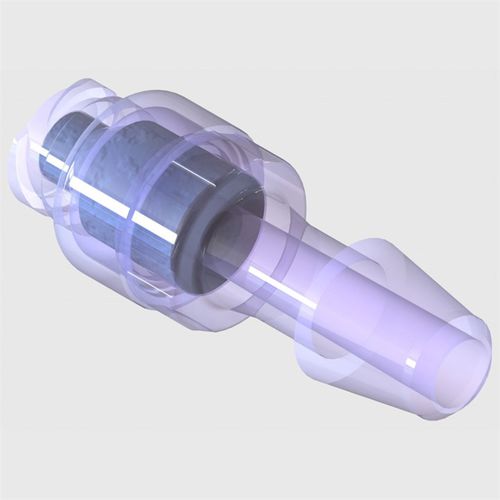

1/4" Barbed Straight Swabable Needle Free Luer Activated Valve, Clear Polycarbonate Extended Description A 1/4" barbed Clear Polycarbonate bodied straight swabable valve that can be used as a needle free access site for injecting or aspirating fluids. Typically used in IV and drug delivery applications or any application where a closed female luer access site is needed. Ambient Temperature 0°C – 121°C (32°F – 250°F) Mounting Style In-line Connection 1 336" (8.64mm) OD Barb to suit 1/4" (6.35mm) ID Tubing Connection 2 Female Luer Lock Recommended Filtration Not Applicable Media Temperature 0°C – 121°C (32°F – 250°F) Non-Wetted Materials Not Applicable Wetted Materials Clear Polycarbonate, Blue Silicone Cleanroom Manufactured No Max. Inlet Pressure 22.4 Bar* (325 psi*) Max. Back Pressure 2.75 Bar▲ (40 psi▲) Cracking Pressure Valve Opened by Luer Connection
