Liquid filter E-M-160008

liquid filter
liquid filter
liquid filter
liquid filter
liquid filter
liquid filter
liquid filter
Add to favorites
Compare this product


for liquids, gas, dust
laboratory, for the medical industry, dental, for respiratory ventilators
stainless steel, polysulfone
Connection type
Other characteristics
non-sterile, vacuum
Filtration capacity

5 µm, 25 µm, 43 µm, 73 µm

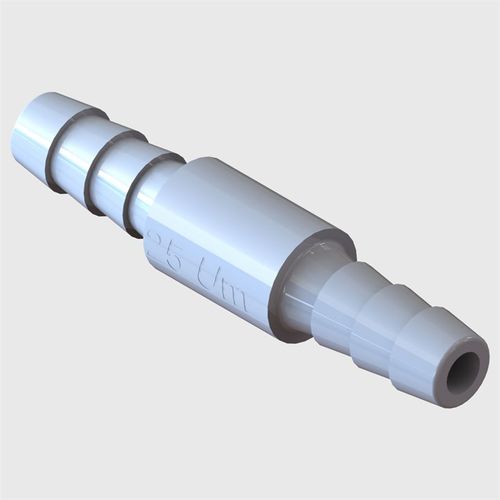

Polysulfone Miniature Disposable Filter, 25 Micron Dutch Weave Stainless Steel Screen, 1/8" (3.2mm) ID Tube Miniature Polysulfone moulded in-line filter, with integral 25 micron Dutch weave Stainless Steel filter screen. Designed for installation within pneumatic, gas and compatible fluid control circuits via the barb to suit 1/8" (3.2mm) ID tubing inlet and outlet Ambient Temperature5 - 48 °C (40 - 120°F) Mounting Style In-Line Connection 1To suit 3.2 mm (1/8") ID Tube Connection 2To suit 3.2 mm (1/8") ID Tube Media Temperature5 - 48 °C (40 - 120°F) Non-Wetted Materials FDA Approved Polysulfone Wetted Materials FDA Approved Polysulfone, 316 Stainless Steel Clean Room Manufactured No Max. Inlet Pressure8.61 bar (125 psi) Operating Pressure Vacuum to 8.61 bar (125 psi) 0.56g (0.020oz) ROHS Compliant Yes Regulatory Information N SF, 3-A Sanitary standards of the Dairy Association, Department of Agriculture for contact with meat and poultry REACH Compliant Yes Filtration25 micron, incorporated within restrictor body
