Liquid filter E-M-160012
gasdustlaboratory

liquid filter
liquid filter
liquid filter
liquid filter
liquid filter
liquid filter
liquid filter
Add to favorites
Compare this product


Characteristics

Fluid
for liquids, gas, dust
Applications
laboratory, for the medical industry, dental, for respiratory ventilators
Material
stainless steel, polysulfone
Connection type
line, male
Other characteristics
non-sterile, vacuum
Filtration capacity

5 µm, 25 µm, 43 µm, 73 µm

Weight

0.48 g
(0.02 oz)

Description

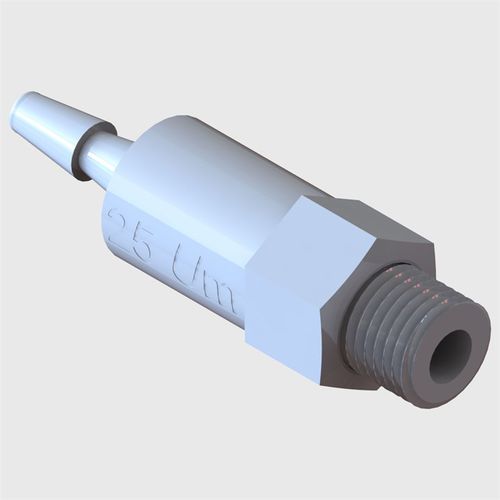

Polysulfone Miniature Disposable Filter, 25 Micron Dutch Weave Stainless Steel Screen, 10-32 UNF Male Thread to 1/16" (1.6mm) ID Tube Extended Description Miniature Polysulfone moulded in-line filter, with integral 25 micron Dutch weave Stainless Steel filter screen. Designed for installation within pneumatic, gas and compatible fluid control circuits via the 10-32 UNF male thread inlet and the barb to suit 1/16" (1.6mm) ID tubing outlet Ambient Temperature 5 - 48 °C (40 - 120°F) Mounting Style Direct / In-Line Connection 1 To suit 1.6 mm (1/16") ID Tube Connection 2 10-32 UNF Male Thread Media Temperature 5 - 48 °C (40 - 120°F) Non-Wetted Materials FDA Approved Polysulfone Wetted Materials FDA Approved Polysulfone, 316 Stainless Steel Cleanroom Manufactured No Max. Inlet Pressure 8.61 bar (125 psi)
