Liquid filter E-M-160016
gasdustlaboratory

liquid filter
liquid filter
liquid filter
Add to favorites
Compare this product


Characteristics

Fluid
for liquids, gas, dust
Applications
laboratory, dental, for respiratory ventilators
Material
stainless steel, polysulfone
Other characteristics
vacuum, non-sterile

Description

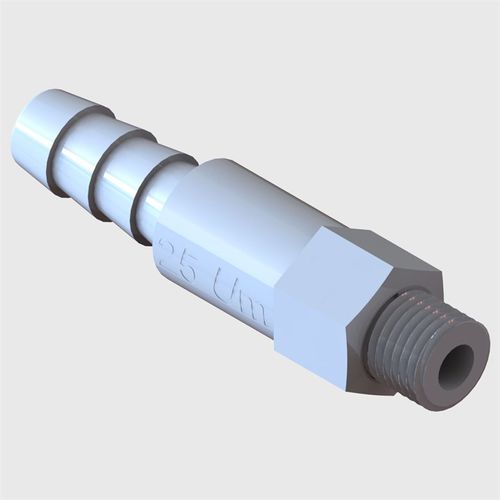

Description 25 Micron In-Line Filter, 10-32 UNF Male Thread x 1/8" Barbed Port, Polysulfone Extended Description Miniature Polysulfone moulded in-line filter, with integral 25 micron Dutch weave stainless steel filter screen. Designed for installation within pneumatic, gas and compatible fluid control circuits via the 10-32 UNF male thread inlet and the barb to suit 1/8" ID tubing outlet Ambient Temperature 5 - 48 °C (40 - 120°F) Mounting Style Direct / In-Line Connection 1 To suit 3.2 mm (1/8") ID Tube Connection 2 10-32 UNF Male Thread Recommended Filtration 25 μm Media Temperature 5 - 48 °C (40 - 120°F) Non-Wetted Materials FDA Approved Polysulfone Wetted Materials FDA Approved Polysulfone, 316 Stainless Steel Clean Room Manufactured No Max. Inlet Pressure 8.61 bar (125 psi) Operating Pressure Vacuum to 8.61 bar (125 psi) Item Weight 0.58g (0.020oz) ROHS Compliant Yes Regulatory Information NSF, 3-A Sanitary standards of the Dairy Association, Department of Agriculture for contact with meat and poultry REACH Compliant Yes Filtration25 micron, incorporated within restrictor body
