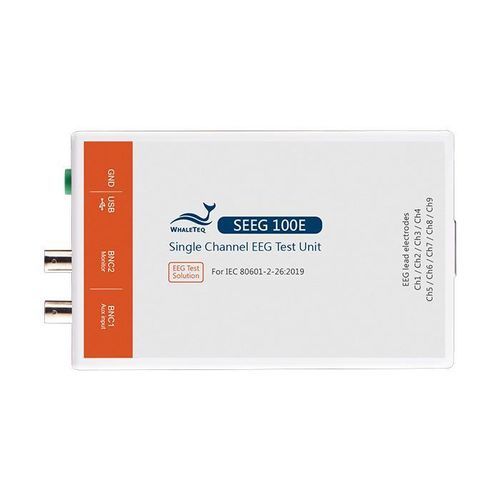

Electroencephalograph tester SEEG 100E

signalEEGautomatic

Overview
The SEEG 100E is a dedicated EEG performance tester for medical device manufacturers, test laboratories and clinical engineering teams. It supports IEC 80601-2-26:2019 compliance testing, provides precise low-amplitude signal generation down to 1µV, and integrates a 620kΩ/4.7nF standard output impedance circuit for realistic EEG source simulation.

Functions

• Output precision: generation of signals from µV range with DAC resolution 0.5µV for accurate amplitude control.
• 9-channel automatic switching: individual channel performance testing with selectable output lead (Ch1–Ch9; Ch10–Ch22 shorted).
• EEG database playback: reproduces clinical or user-defined waveforms (PhysioNet EDF, TXT, Binary and similar formats) for verification of processing chains and algorithms.
• IEC test assistant software: guided procedures to perform IEC 80601-2-26 performance tests, reducing setup time and operator steps.
• SDK for automation: software development kit to integrate and automate test sequences within customer test environments.

Highlights

• Reproducible playback of clinically recorded or custom waveforms to validate device signal handling.
• Wide signal types and ranges: sine, triangle, square, pulses and hysteresis with fine frequency and amplitude steps.
• Built-in output impedance test circuit (620kΩ/4.7nF) and selectable noise injection for realistic test conditions.

Package Contents (example from ordering information)

• SEEG 100E x 1
• EEG breakout box x 1
• Wire tie x 22
• USB cable x 1
• Grounding wire x 1

Technical specifications

• General: Main output voltage accuracy ±1% (≥50µVpp); DAC resolution 0.5µV; sample rate 5kHz ±0.1%; power supply USB 5Vdc, 0.5A (high power mode).
• Signal ranges: Sine/triangle/square/hysteresis 0.05–500Hz (step 0.01Hz); amplitude range −2000 to 2000µV (step 1µV); pulse widths 2–300ms where applicable.
• Output options: DC offset −1000 to 1000mV (step 1mV); output impedance circuit selectable (620kΩ/4.7nF); noise options 50Hz/60Hz/80Hz/100Hz for testing and capacitance correction.
• Ordering / Accessories: Part No. 100-EE00102 = SEEG 100E single-channel test system with EEG breakout box and IEC assistant software. Optional: Part No. 100-OT00001 USB isolator recommended.
